P1802P20294
61100053600
-----------
note: specification of the exact or complete gear unit type with transmission ratio is necessary for clear identification
Actuation
pneumatic
Assembly flange drive
4-hole 80x80 mm
Brand
Hydrocar
Connection actuation thread internal (metric)
M 12x1,25
Control switch
without
Mounting side
reverse side
Position output shaft
reverse side
Specification drive
hub 8x32x36
Standard drive
DIN 5462
Torque drive (Nm)
295
Type of construction
offset
Weight (kg)
7,98
Bending moment
295 Nm
Internal gear ratio
1,30
Number of teeth (box side)
12
----------
PTO za Iveco mjenjač, ??PTO ZF: Prikladno za mjenjače: 2845.5; 2845.6; 2855.5; 2855.6; 2855S.6; 2865.6; 2865S.6; 2870.9; 2870S.9; 2895.9 (NOVO); 2895.

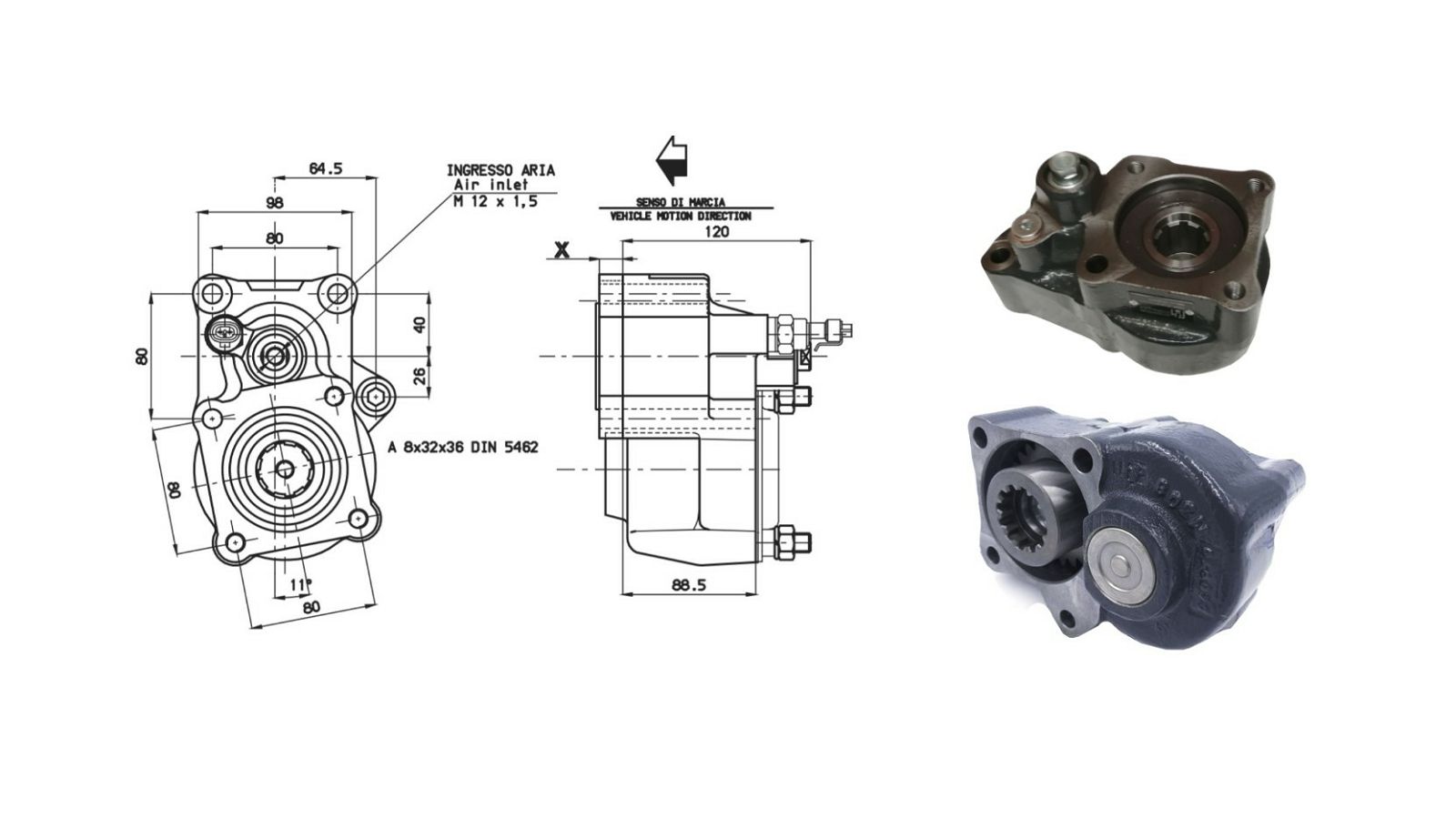

(PTO) Iveco 2845.6 2855.5 2855.6 ISO IPH 1:1.3 295 Nm
