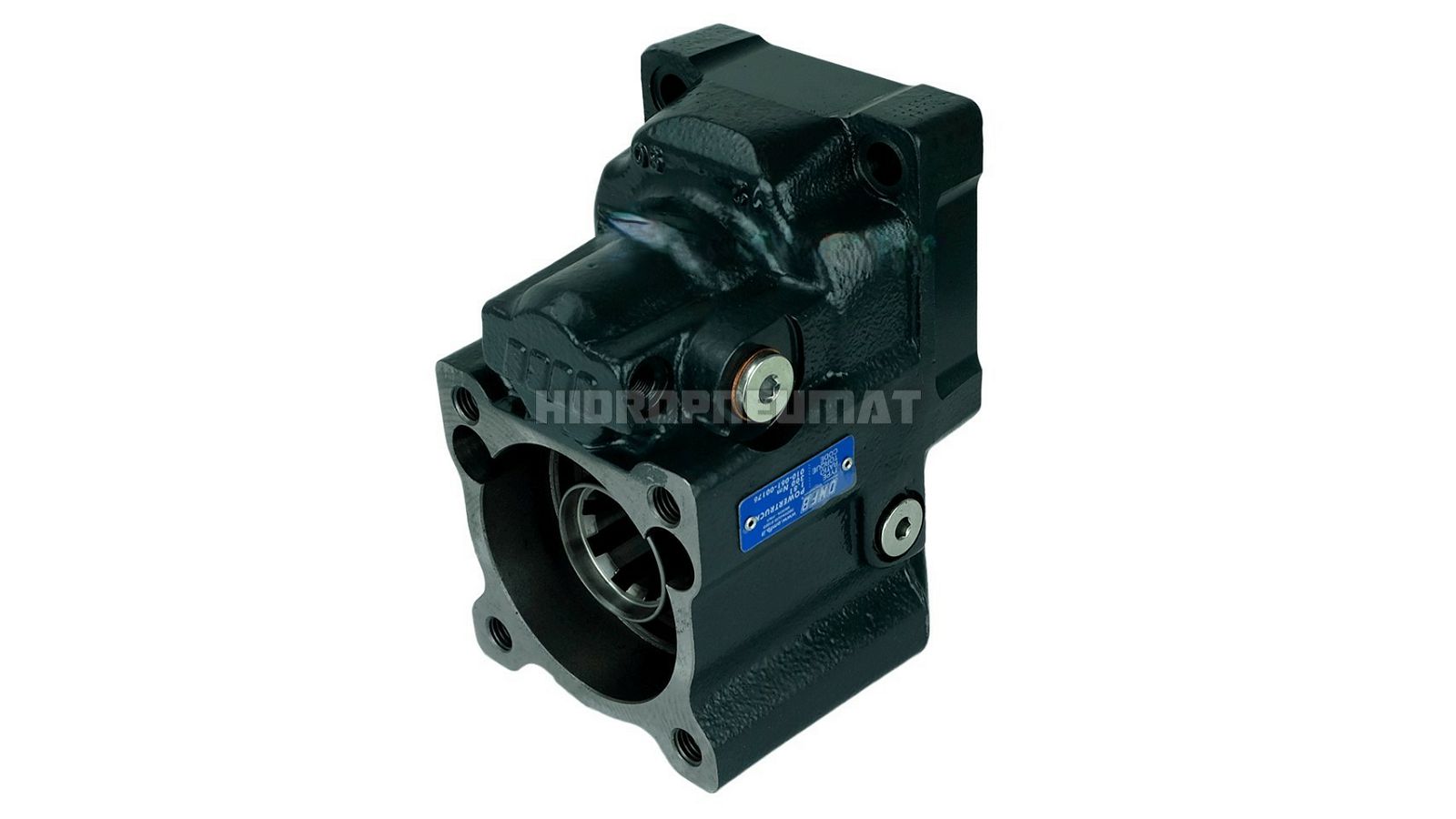

PTO POMOĆNI POGON IPN 2A ZF ECOSPLIT V17 ISO, G1/8", OMJER PRIJENOSA 1:1,81 - OMFB

010-061-00176
01006100176

------------

Prirubnica
ISO

Dimenzija vratila
ISO 8x32x36

Zakretni moment
300 Nm

Omjer prijenosa
1:1,81

Za proizvođače mjenjača
Volvo, Eaton, Mercedes, ZF-ECOSPLIT

Kontrola
Pneumatski

Zračna veza
G 1/8"

Proizvođač
OMFB

Težina proizvoda
8,00 kg

------------

Kompatibilni mjenjači:

DETROIT DIESEL

DT12-DC
DT12-OC
DT12-OD
EATON-FULLER
RTS 12316 A
RTS 14316 A
RTS 15316 A
RTS 17316 A
RTSO 12316 A
RTSO 12316 A + VOITH R115
RTSO 14316 A
RTSO 14316 A + VOITH R115
RTSO 15316 A
RTSO 15316 A + VOITH R115
RTSO 17316 A
RTSO 17316 A + VOITH R115
TWINSPLITTER TS 11612
TWINSPLITTER TS 11612 + VOITH R115
TWINSPLITTER TS 11612 A
TWINSPLITTER TS 12612
TWINSPLITTER TS 12612 A
TWINSPLITTER TS 13612
TWINSPLITTER TS 13612 + VOITH R115
TWINSPLITTER TS 13612 A
TWINSPLITTER TS 15612
TWINSPLITTER TS 15612 + VOITH R115
TWINSPLITTER TS 15612 A
TWINSPLITTER TS 16612
TWINSPLITTER TS 19612
TWINSPLITTER TSO 11612
TWINSPLITTER TSO 11612 + VOITH R115
TWINSPLITTER TSO 11612 A
TWINSPLITTER TSO 12612A
TWINSPLITTER TSO 13612
TWINSPLITTER TSO 13612 A
TWINSPLITTER TSO 15612
TWINSPLITTER TSO 15612 + VOITH R115
TWINSPLITTER TSO 15612 A


HYUNDAI-DYMOS

T 085S6/6,580-0,735 (Mega Truck)
T 095S6/6,580-0,735


MERCEDES

G 125-16/14,0 (DAL/AFTER NR 206764)
G 131-9/14,57-1,0 (GT1) IdNr 715570
G 141-9/14,57 (G1F) IdNr 715571
G 155-16/14,0 (DAL/AFTER NR 206764)
G 155-9/15,9 (DAL/AFTER NR 206764)
G 181-9
G 210-16/14,2-0,83 (GC3) IdNr 715500
G 210-16/14,2-0,83 GC3+VOITH IdNr 715500
G 211-12/14,93 (GH2) IdNr 715350
G 211-12/14,93-1,0 (G2B) IdNr 715352
G 211-12/14,93-1,0 (GH2)+VOITH
G 211-12/14,93-1,0 G2B+ACQUA IdNr715352
G 211-16/17,0 (GD3) FLNG.200
G 211-16/17,0 (GD3) IdNr 715510
G 211-16/17,0 (GD3)+VOITH FLNG.200
G 211-16/17,0 (GD3)+VOITH IdNr 715510
G 221-9/16,15-1,0 (GD5)
G 230-12/11,67-0,78 (G2C) IdNr 715360
G 230-16/14,19-0,83 (G1H) IdNr 715508
G 230-16/14,19-0,83 G1H+AQUA.IdNr 715508
G 230-16/14,2-0,83 (GH5)
G 230-16/14,2-0,83 (GH5)+VOITH
G 231-16/17,0 (GH6)
G 231-16/17,0 (GH6) FLNG.200
G 231-16/17,0 (GH6)+VOITH
G 231-16/17,0 (GH6)+VOITH FLNG.200
G 231-16/17,0-1,0 (G1I) IdNr 715518
G 231-16/17,0-1,0 (G1I)+AQUA.IdNr 715518
G 240-16/11,7 (GC2) IdNr 715520
G 241-16/17,0 (GH7)
G 241-16/17,0 (GH7) POWERSHIFT FLNG.200
G 241-16/17,0 (GH7)+VOITH
G 241-16/17,0 (GH7)PSHIFT+VOITH FLNG.200
G 260-16/11,72-0,69 (G1I) IdNr 715528
G 260-16/11,72-0,69 G1I+AQUA.IdNr 715528
G 280-16/11,7 (GH4)
G 280-16/11,72-0,69 (G2D) IdNr 715523
G 280-16/11,72-0,69 G2D+AQUA.IdNr 715523
G 281-12/14,93-1,0 (G2E) IdNr 715371
G 281-12/14,93-1,0 G2E+AQUA.IdNr 715371
G 291-12/16,46-1,00 IdNr 712820
G 291-12/16,46-1,00+VOITH IdNr 712820
G 330-12/11,63-0,77 (GH8) IdNr 715380
G 330-12/11,63-0,78 (G2F) IdNr 715381
G 330-12/11,63-0,78 G2F+AQUA.IdNr 715381
G 340-12/12,79-0,78 IdNr 712830
G 340-12/12,79-0,78+VOITH IdNr 712830


SCANIA

GR 875
GR 905
GRS 895
GRS 905
GRSO 905
GRSO 925
GRSO 926
GRSO 935
GR 875 + EG 654,EG 664,EG 650,EG 660
GR 875 + EG 655,EG 665,EG 651,EG 661
GR 905 + EG 650
EG 660
GR 905 + EG 651
EG 661
GRS 895 + EG 654,EG 664,EG 650,EG 660
GRS 895 + EG 655,EG 665,EG 651,EG 661
GRS 905 + EG 650
EG 660
GRS 905 + EG 651
EG 661
GRSO 905 + EG 652
EG 662
GRSO 905 + EG 653
EG 663
GRSO 925 + EG 652
EG 662
GRSO 925 + EG 653
EG 663
GRSO 926 + EG 652
EG 662
GRSO 926 + EG 653
EG 663
GRSO 935 + EG 652
EG 662
GRSO 935 + EG 653
EG 663


SINOTRUK

HW 15710
HW 19710
HW 19710T
HW 20710


VOLVO

AT 2412C + & NO RETARDER
AT 2412D + & NO RETARDER
AT 2412E + & NO RETARDER
AT 2412F + & NO RETARDER
AT 2512C + & NO RETARDER
AT 2512E + & NO RETARDER
AT 2612D + & NO RETARDER
AT 2612E + & NO RETARDER
AT 2612F + & NO RETARDER
AT 2812C + & NO RETARDER
AT 2812D + & NO RETARDER
AT 2812E + & NO RETARDER
AT 2812F + & NO RETARDER
ATO 2512C + & NO RETARDER
ATO 2612D + & NO RETARDER
ATO 2612E + & NO RETARDER
ATO 2612F + & NO RETARDER
ATO 3112C + & NO RETARDER
ATO 3112D + & NO RETARDER
ATO 3112E + & NO RETARDER
ATO 3512E + & NO RETARDER
ATO 3512F + & NO RETARDER
R 1000
R 1400
R 1700
R 70
SPO 2812 + & NO RETARDER
SR 1400
SR 1700
SR 1900
SR 2000
SR 70
SRO 2400
VT 1708
VT 2009B
VT 2014
VT 2014 (FILTRO OLIO EST CMB)
VT 2014 + RETARDER VOITH
VT 2214B
VT 2214B (FILTRO OLIO EST CMB)
VT 2214B + RETARDER VOITH
VT 2412 B I-SHIFT (AUTOM.SENZA FRIZIONE)
VT 2412 B I-SHIFT + INTARDER (NO CLUTCH)
VT 2514 + RETARDER VOITH
VT 2514 OD
VT 2514 OD (FILTRO OLIO EST CMB)
VT 2514 OD + RETARDER VOITH
VT 2514B
VT 2514B (C/W EXTERNAL OIL FILTER)
VT 2514B + RETARDER VOITH
VT 2814B
VTO 2214 OD (FILTRO OLIO EST CMB)
VTO 2214B (OD)
VTO 2214B (OD) + RETARDER VOITH
VTO 2514 OD (C/W EXTERNAL OIL FILTER)
VTO 2514B (OD)
VTO 2514B (OD) + RETARDER VOITH
VTO 2814B
VTO 2814B + RETARDER VOITH


YAMZ
YAMZ 239



ZF

12AS-1010 TD/12,84-1,0
12AS-1010 TO/10,37-0,81
12AS-1210 TO/10,37-0,81
12AS-1220 TD/12,84-1,0
12AS-1420 TD/12,84-1,0
12AS-1420 TO/10,37-0,81
12AS-1620 TO/10,37-0,81
12AS-1630 TD/15,86-1,0
12AS-1631 TD+IT/15,86-1,0
12AS-1800+IT/14,89-1,0 (TEC1800+IT)
12AS-1800/14,89-1,0 (TEC1800)
12AS-1930 TD/15,86-1,0
12AS-1931 TD+IT/15,86-1,0
12AS-1931 TD/15,86-1,0+INTARDER IT3
12AS-2130 TD/15,86-1,0
12AS-2131 TD+IT/15,86-1,0
12AS-2131 TD/15,86-1,0 + INTARDER IT3
12AS-2140 TD/15,86-1,0
12AS-2141 TD+IT/15,86-1,0
12AS-2301 TD+IT/15,86-1,0
12AS-2330 TD/15,86-1,0
12AS-2331 TD+IT/15,86-1,0
12AS-2331 TD/15,86-1,0 + INTARDER IT3
12AS-2340 TD/15,86-1,0
12AS-2341 TD+IT/15,86-1,0
12AS-2430 TD/15,86-1,0
12AS-2431 TD+IT/15,86-1,0
12AS-2540 TD/15,86-1,0
12AS-2541 TD+IT/15,86-1,0
12AS-2541 TD/15,86-1,0 + INTARDER IT3
12AS-2741 TD/15,86-1,0 + INTARDER IT3
12S-2130 TD/15,57 ECOSPLIT4
12S-2130 TD/15,57-1,0
12S-2131 TD+IT/15,57-1,0
12S-2131 TD+IT3/15,57-ECOSPLIT4+IT3
12S-2230 TD/15,57 ECOSPLIT4
12S-2330 TD/15,57-1,0
12S-2331 TD+IT/15,57-1,0
12S-2331 TD+IT3/15,57-ECOSPLIT4+IT3
12S-2530 TD/15,57 ECOSPLIT4
12S-2830 TD/15,57 ECOSPLIT4
12S-2830 TD/15,57-1,0
12S-2831 TD+IT/15,57-1,0
12S-2831 TD+IT3/15,57-ECOSPLIT4+IT3
12S-2833 TD+IT/15,57-1,0
12S-2833 TD+IT3/15,57-ECOSPLIT4+IT3
12S-2833 TD/15,57 ECOSPLIT4
12S-2833 TD/15,57-1,0
12S-2833 TD/15,85 ECOSPLIT4
12TX-1410 TD/16,69-1,0
12TX-1411 TD+IT/16,69-1,0
12TX-1610 TD/16,69-1,0
12TX-1610 TO/12,92-0,77
12TX-1611 TD+IT/16,69-1,0
12TX-1611 TO+IT/12,92-0,77
12TX-1810 TD/16,69-1,0
12TX-1810 TO/12,92-0,77
12TX-1811 TD+IT/16,69-1,0
12TX-1811 TO+IT/12,92-0,77
12TX-2010 TD/16,69-1,0
12TX-2010 TO/12,92-0,77
12TX-2011 TD+IT/16,69-1,0
12TX-2011 TO+IT/12,92-0,77
12TX-2210 TD/16,69-1,0
12TX-2210 TO/12,92-0,77
12TX-2211 TD+IT/16,69-1,0
12TX-2211 TO+IT/12,92-0,77
12TX-2410 TO/12,92-0,77
12TX-2411 TO+IT/12,92-0,77
12TX-2420 TD/16,69-1,0
12TX-2421 TD+IT/16,69-1,0
12TX-2610 TO/12,92-0,77
12TX-2611 TO+IT/12,92-0,77
12TX-2620 TD/16,69-1,0
12TX-2621 TD+IT/16,69-1,0
12TX-2624 TD/16,69-1,0
12TX-2820 TD/16,69-1,0
12TX-2820 TO/12,92-0,77
12TX-2821 TD+IT/16,69-1,0
12TX-2821 TO+IT/12,92-0,77
12TX-3020 TO/12,92-0,77
12TX-3021 TO+IT/12,92-0,77
12TX-3220 TO/12,92-0,77
12TX-3221 TO+IT/12,92-0,77
12TX-3420 TO/12,92-0,77
12TX-3421 TO+IT/12,92-0,77
16AS-2200+IT/15,89-1,0 (TEC2200+IT)
16AS-2200/15,89-1,0 (TEC2200)
16AS-2230 TD/17,03-1,0
16AS-2231 TD+IT/17,03-1,0
16AS-2631 TO+IT/14,12-0,83
16AS-2631 TO/14,12-0,83+INTARDER IT3
16K-130/10,14
16K-130/11,46
16K-130/13,68
16K-130/14,29
16K-130/17,28
16S-109/11,86-0,82
16S-109/13,04
16S-109/13,30-1,0
16S-109/13,31-1,0
16S-109/13,41-1,0
16S-109/13,42
16S-109/13,53-0,82
16S-112/11,46
16S-112/13,68
16S-112/13,85
16S-112/17,28
16S-130/11,46
16S-130/17,28
16S-1455/18,10 OLD
16S-150/13,80
16S-150/13,80-0,84
16S-150/16,47
16S-150/16,47-1,00
16S-151 TD+IT/16,41-1,00
16S-151 TD/16,41-1,00
16S-151 TO+IT/13,80-0,84
16S-151 TO/13,80-0,84
16S-151/13,74-0,84
16S-151/13,74-0,84 + INTARDER
16S-151/16,41-1,00
16S-151/16,41-1,00 + INTARDER
16S-151/16,47-1,00
16S-151/16,47-1,00 + INTARDER
16S-151/16,53-1,00
16S-1585 TD/16,41-1,0
16S-160/11,46
16S-160/13,68
16S-160/13,85
16S-160A/11,74-0,87
16S-1620 TD/16,41 ECOSPLIT4
16S-1620 TD/16,41-1,0
16S-1621 TD+IT/16,41-1,0
16S-1621 TD+IT3/16,41-ECOSPLIT4+IT3
16S-1630 TD+IT/16,41-1,0
16S-1630 TD/16,41 ECOSPLIT4
16S-1630 TD/16,41-1,0
16S-1631 TD+IT3/16,41-ECOSPLIT4+IT3
16S-1650 TD/15,39 NEW
16S-1650 TD/15,39 OLD
16S-1685 TD/16,41-1,0
16S-181 TD+IT/16,41-1,00
16S-181 TD/16,41-1,00
16S-181 TO+IT/13,80-0,84
16S-181 TO/13,80-0,84
16S-181/13,74-0,84
16S-181/13,74-0,84 + INTARDER
16S-181/16,41-1,00
16S-181/16,41-1,00 + INTARDER
16S-181/16,47-1,00
16S-181/16,47-1,00 + INTARDER
16S-1820 TO/13,80 ECOSPLIT4
16S-1820 TO/13,80-0,84
16S-1821 TO+IT/13,80-0,84
16S-1821 TO+IT3/13,80-ECOSPLIT4+IT3
16S-1830 TO/13,80 ECOSPLIT4
16S-1830 TO/13,80-0,84
16S-1831 TO+IT/13,80-0,84
16S-1831 TO+IT3/13,80-ECOSPLIT4+IT3
16S-190/11,46
16S-190/13,68
16S-190/17,06
16S-1920 TD/16,41 ECOSPLIT4
16S-1920 TD/16,41-1,0
16S-1921 TD+IT/16,41-1,0
16S-1930 TD/16,41 ECOSPLIT4
16S-1930 TD/16,41-1,0
16S-1930 TO/13,80 ECOSPLIT4
16S-1930 TO/13,80-0,84
16S-1931 TD+IT/16,41-1,0
16S-1931 TD+IT3/16,41-ECOSPLIT4+IT3
16S-1950 TD/15,39 (CAMC)
16S-220/13,80-0,84
16S-220/16,47-1,00
16S-221 TD+IT/16,41-1,00
16S-221 TD/16,41-1,00
16S-221 TO+IT/13,80-0,84
16S-221 TO/13,80-0,84
16S-221/13,74-0,84
16S-221/13,74-0,84 + INTARDER
16S-221/16,41-1,00
16S-221/16,41-1,00 + INTARDER
16S-221/16,47-1,00
16S-221/16,47-1,00 + INTARDER
16S-221/16,53-1,00
16S-2220 TD/16,41 ECOSPLIT4
16S-2220 TD/16,41-1,0
16S-2220 TO/13,80 ECOSPLIT4
16S-2220 TO/13,80-0,84
16S-2221 TD+IT/16,41-1,0
16S-2221 TD+IT3/16,41-ECOSPLIT4+IT3
16S-2221 TO+IT/13,80-0,84
16S-2221 TO+IT3/13,80-ECOSPLIT4+IT3
16S-2230 TD/16,41 ECOSPLIT4
16S-2230 TD/16,41-1,0
16S-2230 TO/13,80 ECOSPLIT4
16S-2230 TO/13,80-0,84
16S-2231 TD+IT/16,41-1,0
16S-2231 TD+IT3/16,41-ECOSPLIT4+IT3
16S-2231 TO+IT/13,80-0,84
16S-2231 TO+IT3/13,80-ECOSPLIT4+IT3
16S-2280 TO/13,80 ECOSPLIT4
16S-2280 TO/13,80-0,84
16S-2320 TD/16,41 ECOSPLIT4
16S-2320 TD/16,41-1,0
16S-2321 TD+IT/16,41-1,0
16S-2330 TD/16,41 ECOSPLIT4
16S-2330 TD/16,41-1,0
16S-2331 TD+IT/16,41-1,0
16S-2331 TD+IT3/16,41-ECOSPLIT4+IT3
16S-251 TO+IT/13,80-0,84
16S-251 TO/13,80-0,84
16S-252 (MAN)
16S-252+IT (MAN)
16S-2520 TO/13,80 ECOSPLIT4
16S-2520 TO/13,80-0,84
16S-2521 TO+IT/13,80-0,84
16S-2530 TO/13,80 ECOSPLIT4
16S-2530 TO/13,80-0,84
16S-2531 TO+IT/13,80-0,84
16S-2531 TO+IT3/13,80-ECOSPLIT4+IT3
16S-2720 TO/13,80-0,84
16S-2721 TO+IT/13,80-0,84
16S-2721 TO+IT3/13,80-ECOSPLIT4+IT3
16S-2730 TO/13,80-0,84
16S-2731 TO+IT/13,80-0,84
16S-2731 TO+IT3/13,80-ECOSPLIT4+IT3
16TX-1640 TD/17,94-1,00
16TX-1641 TD+IT/17,94-1,00
16TX-1840 TD/17,94-1,00
16TX-1840 TO/14,68-0,82
16TX-1841 TD+IT/17,94-1,00
16TX-1841 TO+IT/14,68-0,82
16TX-2040 TD/17,94-1,00
16TX-2040 TO/14,68-0,82
16TX-2041 TD+IT/17,94-1,00
16TX-2041 TO+IT/14,68-0,82
16TX-2240 TD/17,94-1,00
16TX-2240 TO/14,68-0,82
16TX-2241 TD+IT/17,94-1,00
16TX-2241 TO+IT/14,68-0,82
16TX-2440 TO/14,68-0,82
16TX-2441 TO+IT/14,68-0,82
16TX-2640 TD/17,94-1,00
16TX-2640 TO/14,68-0,82
16TX-2641 TD+IT/17,94-1,00
16TX-2641 TO+IT/14,68-0,82
16TX-2840 TD/17,94-1,00
16TX-2840 TO/14,68-0,82
16TX-2841 TD+IT/17,94-1,00
16TX-2841 TO+IT/14,68-0,82
16TX-3040 TO/14,68-0,82
16TX-3041 TO+IT/14,68-0,82
16TX-3240 TO/14,68-0,82
16TX-3241 TO+IT/14,68-0,82
16TX-3440 TO/14,68-0,82
16TX-3441 TO+IT/14,68-0,82
4S-120GP/10,91
4S-120GP/9,16
5S-110GP/ 9,72 + GV91/11,1
5S-110GP/13,1
5S-110GP/13,1 + GV91/11,1
5S-110GP/9,72
5S-110GPA/13,4
5S-111GP/13,04
5S-111GP/13,04 + GV91/11,07
5S-111GPA/13,33
5S-90GP/13,0
5S-90GPA/13,32
5S-91GP/13,0
5S-92GP/13,01
5S-92GP/13,33
6AS-1000 TO/6,75-0,78
6AS-1100 TO/6,75-0,74
6AS-800 TO/6,58-0,78
6S-1000 TO/6,75-0,78
6S-1100 TO/6,75-0,74
6S-1200/7,72-1,0
6S-800 TO/6,58-0,78
8S-109/13,53-1,00
8S-151 TO/11,54-0,84
8S-1620 TD/13,80-1,00
8S-181/13,80-1,00
8S-1820 TO/11,54-0,84
8S-1830 TO/11,54-0,84
8S-220 TO+IT/11,54-0,84
8S-220 TO/11,54-0,84
9AS-1110 TD/12,73-1,00
9AS-1110 TO/9,48-0,75
9AS-1117 TD/14,10-1,00
9AS-1117 TO/10,51-0,75
9AS-1310 TD/12,73-1,00
9AS-1310 TO/9,48-0,75
9AS-1317 TD/14,10-1,00
9AS-1317 TO/10,51-0,75
9AS-1510 TO/9,48-0,75
9AS-1517 TO/10,51-0,75
9AS-910 TD/12,73-1,00
9AS-917 TD/14,10-1,00
9S-109/10,24-0,74
9S-109/12,91-1,0
9S-109/12,92-1,0
9S-1110 TD/12,73-1,00
9S-1110 TO/9,48-0,75
9S-1117 TD/14,10-1,00
9S-1117 TO/10,51-0,75
9S-1310 TD/12,73-1,00
9S-1310 TO/9,48-0,75
9S-1317 TD/14,10-1,00
9S-1317 TO/10,51-0,75
9S-1510 TO/9,48-0,75
9S-1517 TO/10,51-0,75
9S-1820 TD/15,16-1,00
9S-75/13,16-1,0
9S-75/9,56-0,73
9S-910 TD/12,73-1,00
9S-917 TD/14,10-1,00
S5-50/5,50
S5-50/6,61
S5-50/6,61 + GV 80/5,30
S5-50/8,02
S5-50/8,02 + GV 80/6,20
S6-65/6,37
S6-65/6,70
S6-65/7,97 + GV 80/6,70
S6-65/9,00
S6-65/9,00 + GV 80/6,70
S6-65/9,00 + GV 80/7,52
S6-66/7,36-0,85
S6-66/9,06 + GV 66/7,51
S6-66/9,06-1,0
S6-70/6,80
S6-70/6,80 + GV 70/5,71
S6-70/7,92
S6-70/9,03
S6-70/9,59
S6-80/6,70
S6-80/6,70 + GV 80/5,30
S6-80/7,67 + GV 80/6,70
S6-80/9,00
S6-80/9,00 + GV 80/7,48
S6-80/9,00 + GV 80/7,52
S6-90/6,37
S6-90/7,03
S6-90/7,03 + GV 90/5,67
S6-90/9,01
S6-90/9,01 + GV 90/7,40
ZF-MERITOR
M-13Z12A-A13-15,86/1,0
M-14Z12A-A14-15,86/1,0
