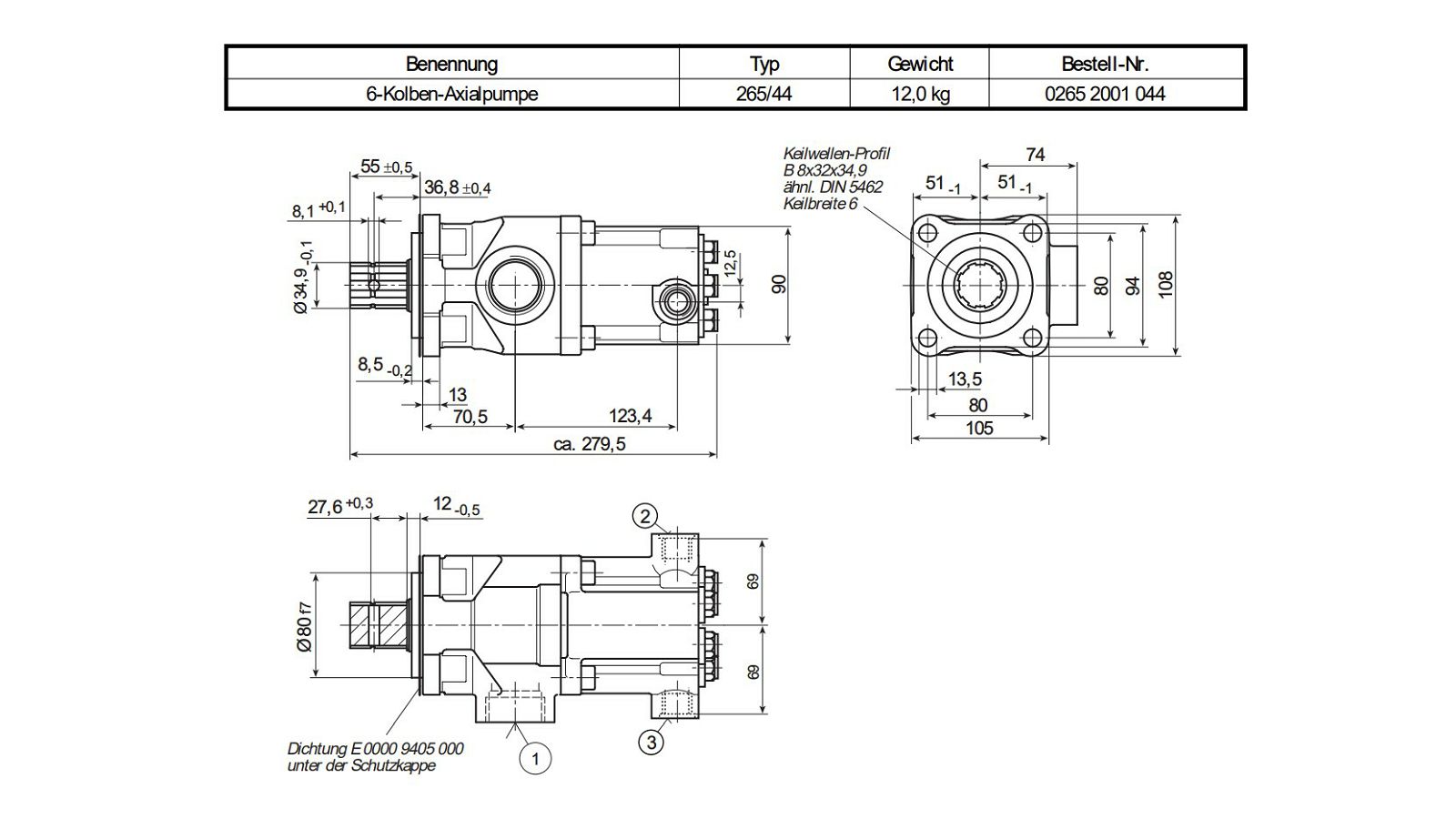

02652001044
265/44
61102597800
-----------
Assembly flange drive
4-hole 80x80 mm
Brand
Meiller
Construction form
straight
Delivery rate 1 (cm3/r)
26
Delivery rate 2 (cm3/r)
26
Direction of rotation
left
right
Direction of rotation changeable
yes
Material housing
cast steel
Max. pressure (bar)
350
Max. revolution (rpm)
2000
Operating pressure (bar)
350
Pressure connection 1
M 22x1.5 internal thread
Pressure connection 2
M 22x1.5 internal thread
Specification drive
shaft 8x32x36
Standard drive
DIN 5462
Suction connection
M 45x2 internal thread
Weight (kg)
12
