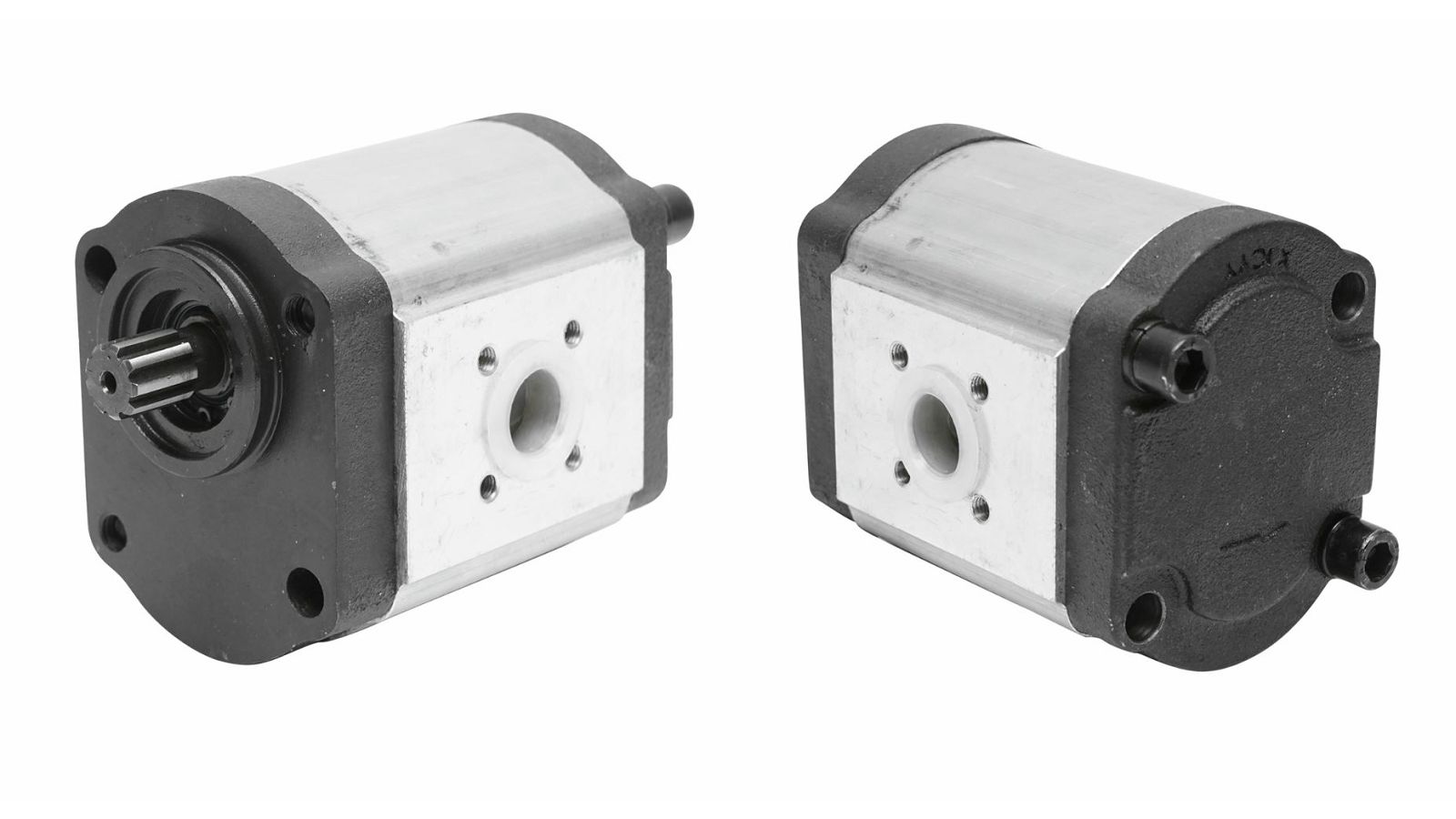

R918C02157
0510715309
0510415313
AZPF-22-022LFP20MB-S0040
1PN229AJT3/418
01175996 DEUTZ-FAHR
01176453 DEUTZ-FAHR
1825210M91 MASSEY FERGUSON
3539858M91 MASSEY FERGUSON
62000003900
-----------
Weight (kg)
3,67
Brand
Bosch-Rexroth
Operating pressure (bar)
230
Manufactured size
F
Max. revolution (rpm)
3000
Material housing
aluminum
o shaft/hub (mm)
16,5
Center o flange (mm)
50
Direction of rotation
left
Version
single pump
Delivery volume (cm3/r)
22
Specification drive
splined shaft DIN 5482 B17x14
o suction connection (mm)
20
Mounting suction connection
hole circle 40 mm M 6
o pressure connection (mm)
15
Mounting pressure connection
hole circle 35 mm M 6
Optional equipment valve
without valve
Assembly flange drive
2-hole 60x60 mm M 10
Usage
hoist
