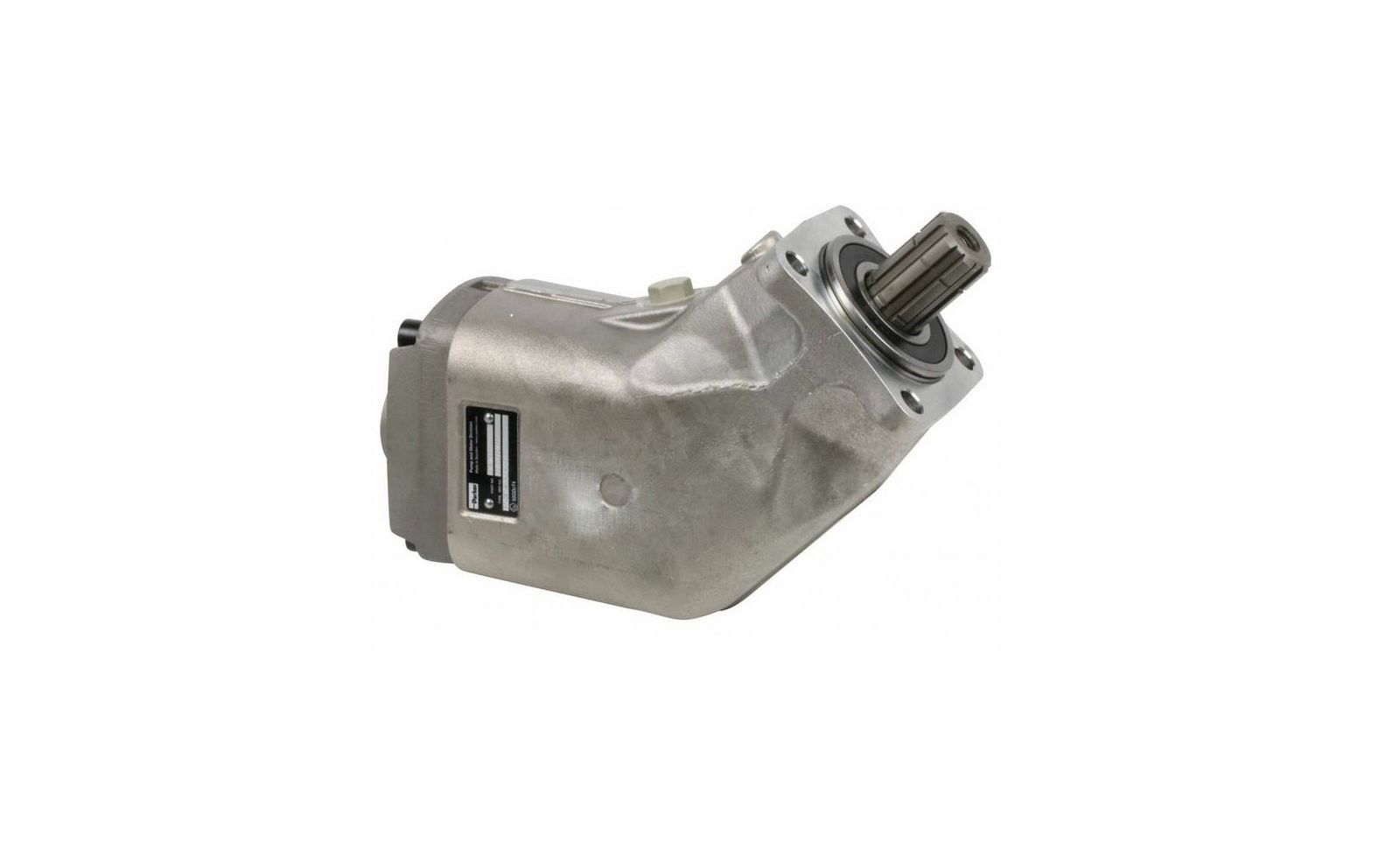

PUMPA F1-25-R, 25,6cm3/r, DESNA - PARKER (SCH)

3781024
F1-25-R
F125R
F1-025-R
F01-25-R
61100111200
201FX025DSE
201FX025SSE
R902162388
A17FO023/10NLWK0E81-0
3781025
F01-025-L
3781024
F01-025-R
3781024
HDS25
60100110253
60100110259
XPi25 0523800
SAP025 23025 23025R
SCP025 20292 20292R
EP1396A
A17FO23/10NRWK0E81-0
F1-25-R 3781024,
lijevo F1-25-L 3781025
SCP-025L-N-DL4-H35-S0S-000
SCP-025R-N-DL4-H35- S0S-000
SCP-025L-N-DL4-L35-S0S-000
SCP-025R-N-DL4-L35-S0S-000
F01025R
41811 SCHWARZMULLER


--------------------------


Max. revolution (rpm)
3050

Direction of rotation changeable
yes

Delivery rate (cm3/r)
25,6

Direction of rotation
right

Standard drive DIN
5462

Pressure connection
G 3/4 inch internal thread

Type
F1-25-R

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
8,912

Operating pressure (bar)
350

Brand
Parker

Suction connection
plugged in

Max. pressure (bar)
400

Material housing
aluminum

Construction
inclined axis

Specification drive
shaft 8x32x36
