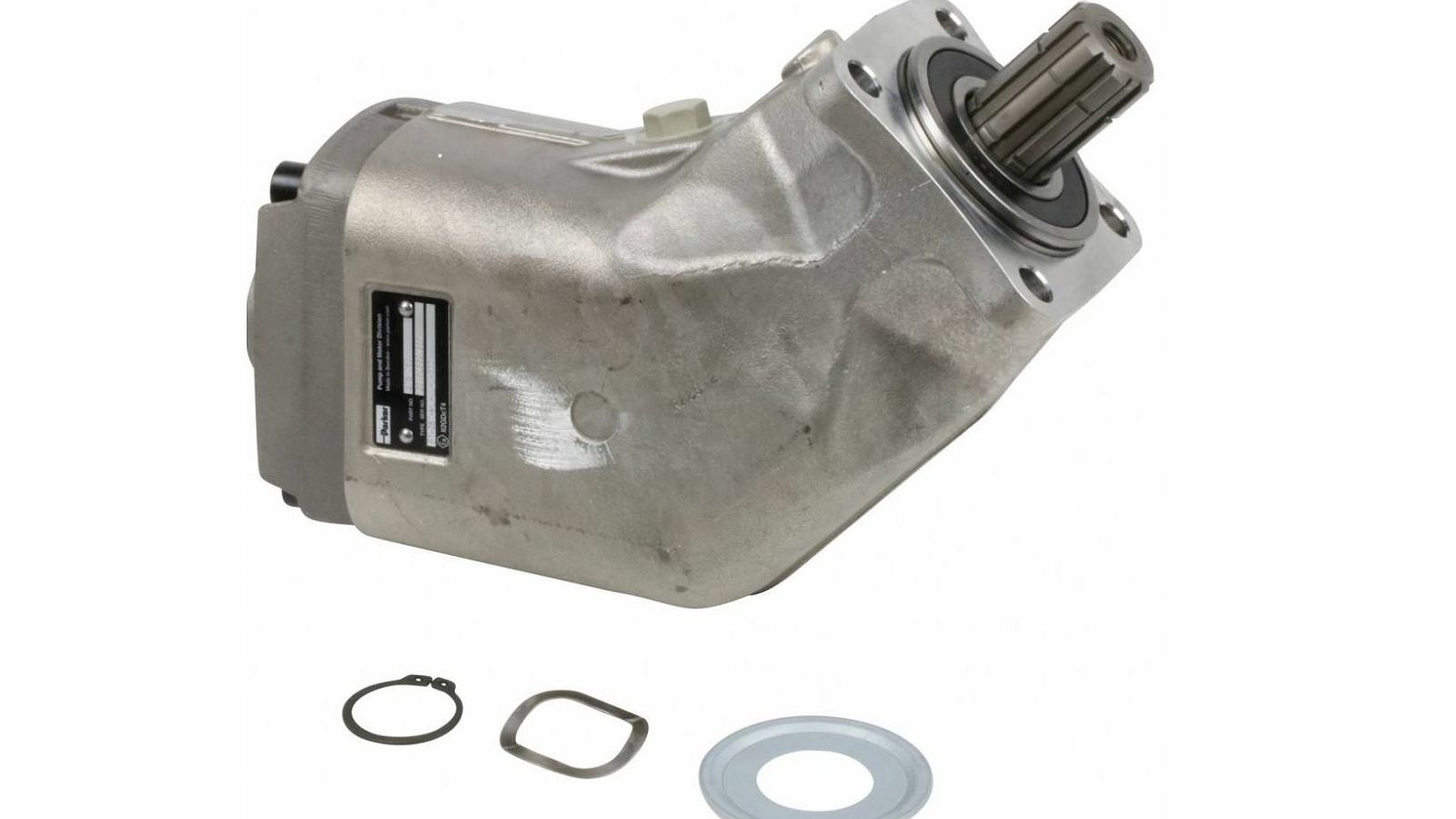

PUMPA F1-51-R, 51,1cm3/r, DESNA - PARKER (SCH)

3781050
F1-51-R
F1051-R
F1-051-R
61100111400
0523770
EP1399A
EP1401A
lijevo F1-51-L, 3781051
SAP-056R-N-DL4-L35-S0s-000
desno A17FO45/10NRWK0E81-0, lijevo A17FO45/10NLWK0E81-0
desno SCP-047R-N-DL4-L35-S0S-000, lijevo SCP-047L-N-DL4-L35-S0S-000
desno SCP-047R-N-DL4-H35- S0S-000 lijevo SCP-047L-N-DL4-H35-S0S-000
desno SCP-056R-N-DL4-L35-S0S-000 lijevo SCP-056L-N-DL4-L35-S0S-000
desno SCP-056R- N -DL4-H35-S0S-000, lijevo SCP-056L-N-DL4-H35-S0S-000
F01051R
F1051R
60100110553
41813 SCHWARZMULLER


Weight (kg)
8,5

Brand
Parker

Operating pressure (bar)
350

Max. revolution (rpm)
2450

Direction of rotation changeable
yes

Max. pressure (bar)
400

Delivery rate (cm3/r)
51,1

Direction of rotation
right

Standard drive DIN
5462

Material housing
aluminum

Construction form
inclined axis

Type
F1-51-R

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Suction connection
plugged in

Pressure connection
G 3/4 inch internal thread
