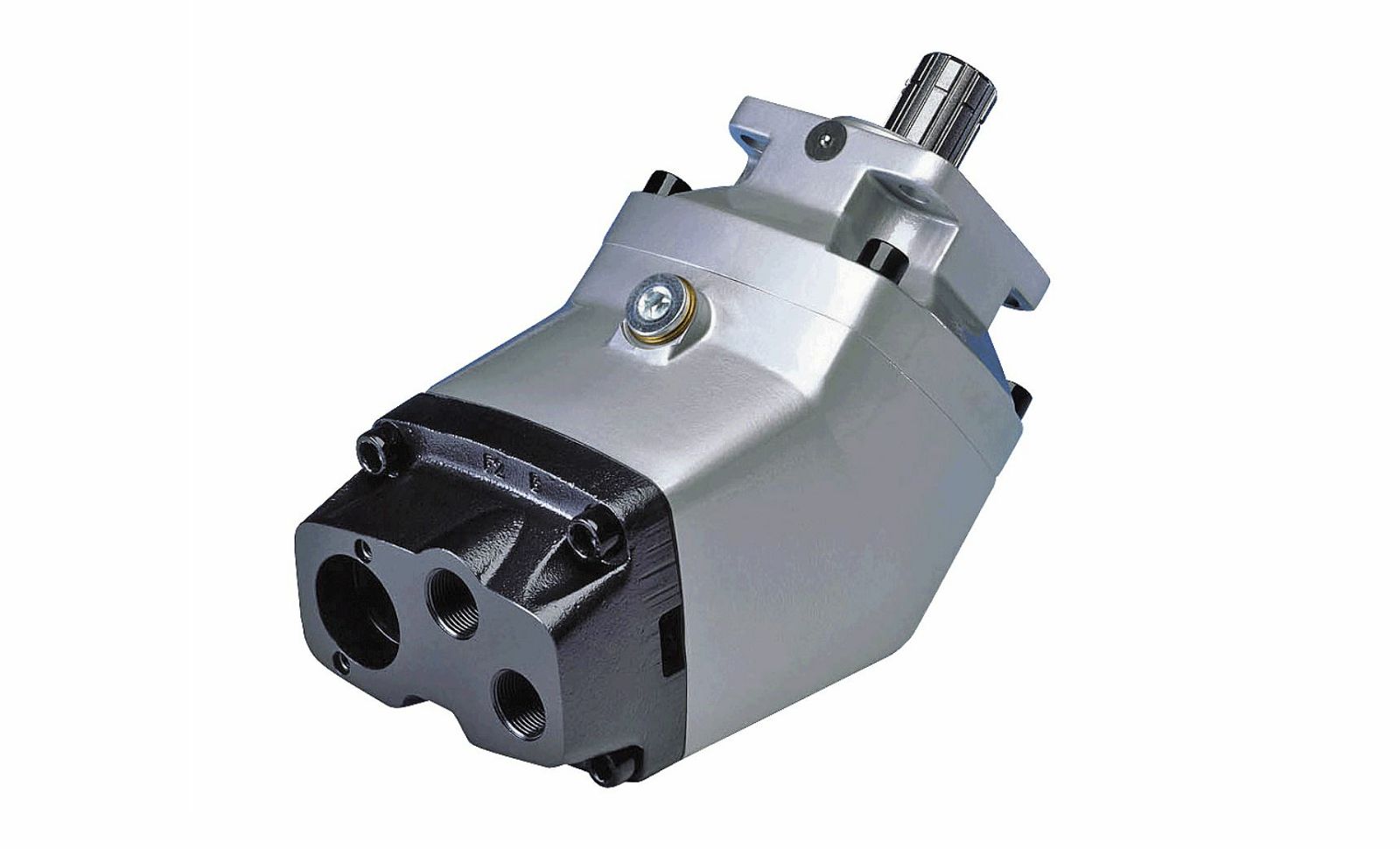

PUMPA F2-70/70-L, 68cm3/r, 2X70 - PARKER

3784071
F2-70/70-L
F27070L
0516100 LEDUC PA2x75
OMFB Twin-Flow 70/70L ISO - 60400117079
61100150500

----------------

Max. revolution (rpm)
1650

Direction of rotation changeable
no

Direction of rotation
left

Standard drive DIN
5462

Delivery rate 1 (cm3/r)
68

Delivery rate 2 (cm3/r)
68

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Type
F2-70/70-L

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
18
Operating pressure (bar)
300

Brand
Parker

Suction connection
clamped

Max. pressure (bar)
350

Material housing
aluminum

Construction
inclined axis

Specification drive
shaft 8x32x36
