3784070
F2-70/70-R
F27070R
0516100 LEDUC
60400117073 - OMFB Twin-Flow 70/70R ISO
60400117673
23334 - Sunfab
SCPD-76/76R-N-DL4-L35-S0S-200
61100150600
--------------
Max. revolution (rpm)
1650
Direction of rotation changeable
no
Direction of rotation
right
Standard drive DIN
5462
Delivery rate 1 (cm3/r)
68
Delivery rate 2 (cm3/r)
68
Pressure connection 1
3/4 inch internal thread
Pressure connection 2
3/4 inch internal thread

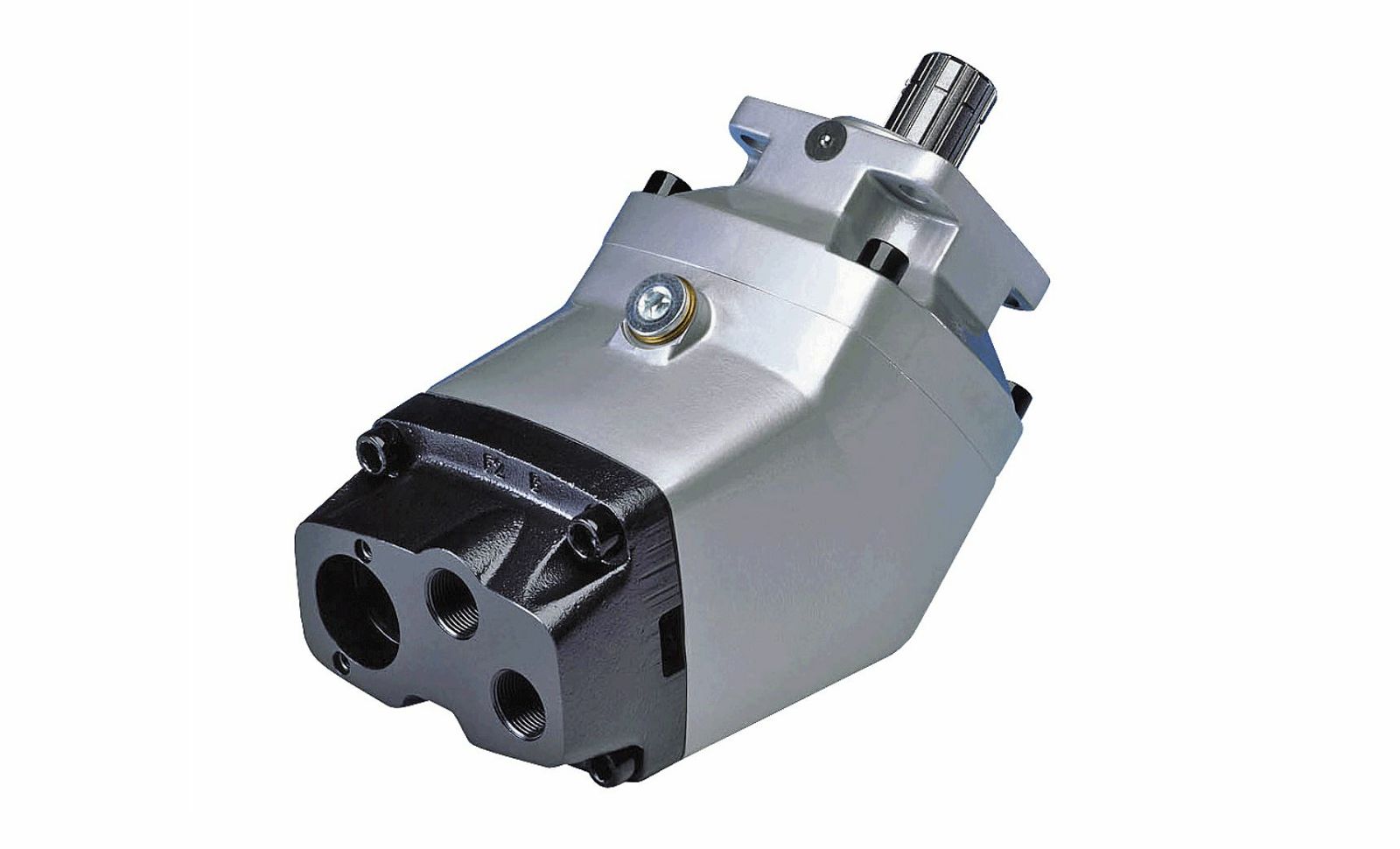

Type
F2-70/70-R
Assembly flange drive
4-hole 80x80 mm
Weight (kg)
18
Operating pressure (bar)
300
Brand
Parker
Suction connection
clamped
Max. pressure (bar)
350
Material housing
aluminum
Construction
inclined axis
Specification drive
shaft 8x32x36
