0510666303
514100490160 FENDT
F180860010030 FENDT
G385940100010
AZPFFB-10-019/011/2,0LFB202002MB-S0218
62000005300
---------
Weight (kg)
7,164
Brand
Bosch-Rexroth
Operating pressure (bar)
210
Manufactured size
F
Max. revolution (rpm)
3000
Max. pressure (bar)
250
Material housing
aluminum
o shaft/hub (mm)
16,5
Center o flange (mm)
80
Direction of rotation
left

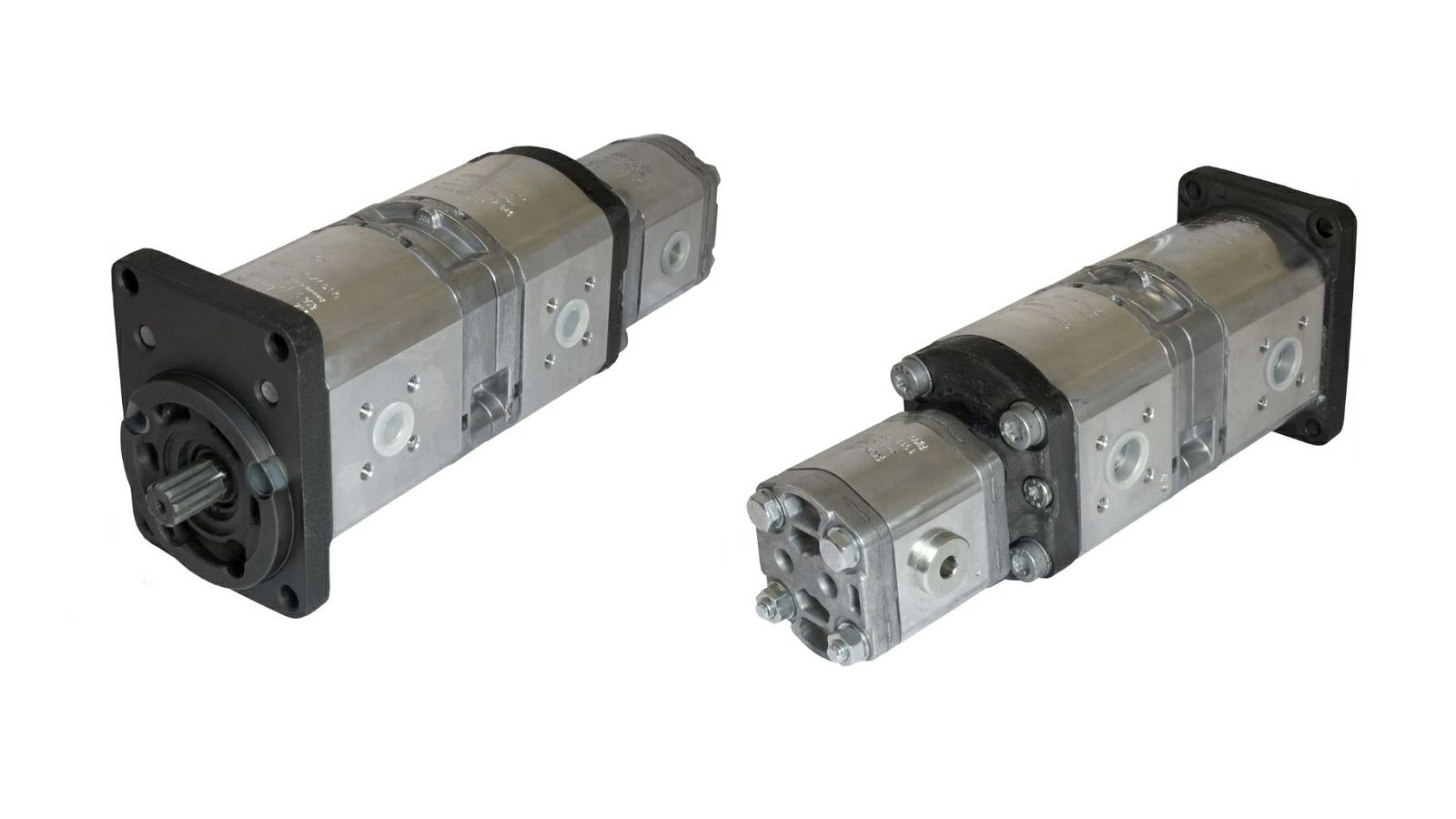

Version
triple pump
Delivery volume (cm3/r)
19/11/2
Specification drive
shaft DIN 5482 B 17x14
o suction connection (mm)
20
Mounting suction connection
hole circle 40 mm M 6
o pressure connection (mm)
15
Mounting pressure connection
hole circle 35 mm M 6
Optional equipment valve
without valve
Assembly flange drive
4-hole 72x100 mm M 8
