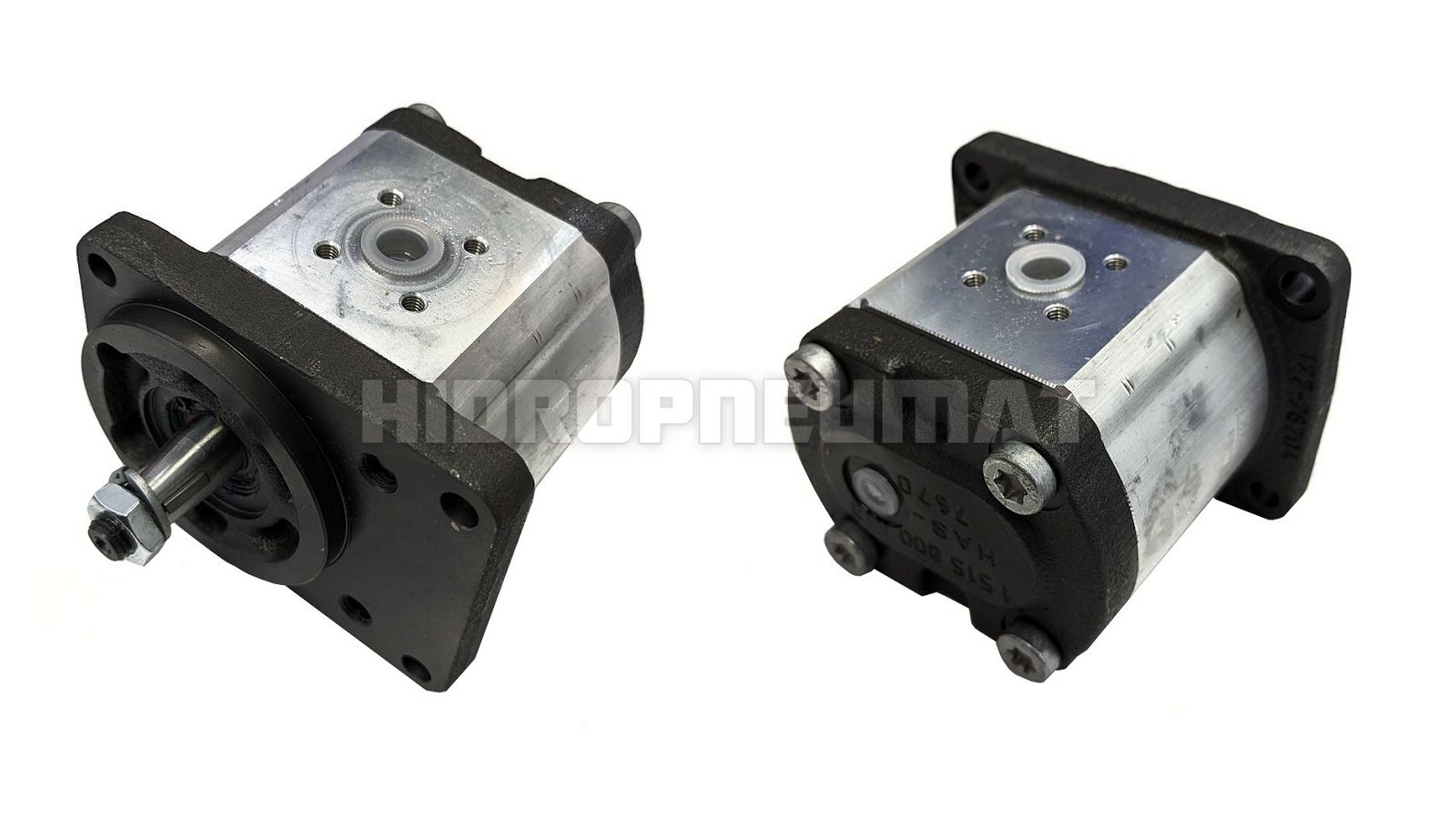

PUMPA IVECO IRISBUS, L=D, 16cm3/r - BOSCH REXROTH

R918C03580
0511625607
5001021237
503137209
503127209
0511625018
5006009434
1515800013
378262
AZMF-11-016UCB20PL
AZMF-11-019RCB20PG210XX
61100344500

------------

Weight (kg)
3,727

Brand
Bosch-Rexroth

Operating pressure (bar)
210

Max. revolution (rpm)
3000

Max. pressure (bar)
210

Displacement (cm3/r)
16

Specification drive
shaft conical 1:5

o shaft/hub (mm)
7

Center o flange (mm)
80

o oil connection A (mm)
15

Mounting oil connection A
hole circle 35 mm M 6

o oil connection B (mm)
15

Mounting oil connection B
hole circle 35 mm M 6

Direction of rotation
left

Direction of rotation
right

Assembly flange drive
4-hole 100x72 mm M 8

Usage
fan drive
