0516100
PA2-75
EP502
2x75cc
PA75+75
PA-2-75
Sunfab SCPD-76/76R-N-DL4-L35-S0S-200
60400117073
60400117673
usisni priključak za nju: 240131
moguća zamjena 3784070, 3784071
--------------
Max. revolution (rpm)
1350
Direction of rotation
left
Direction of rotation
right
Standard drive DIN
5462
Delivery rate 1 (cm3/r)
75
Delivery rate 2 (cm3/r)
75
Pressure connection 1
3/4 inch internal thread
Pressure connection 2
3/4 inch internal thread
Type
PA 2-75
Assembly flange drive
4-hole 80x80 mm
Weight (kg)
27,851
Operating pressure (bar)
400
Brand
Leduc
Suction connection
2 inch internal thread
Max. pressure (bar)
400
Material housing
cast steel
Construction
straight
Specification drive
shaft 8x32x36
------------

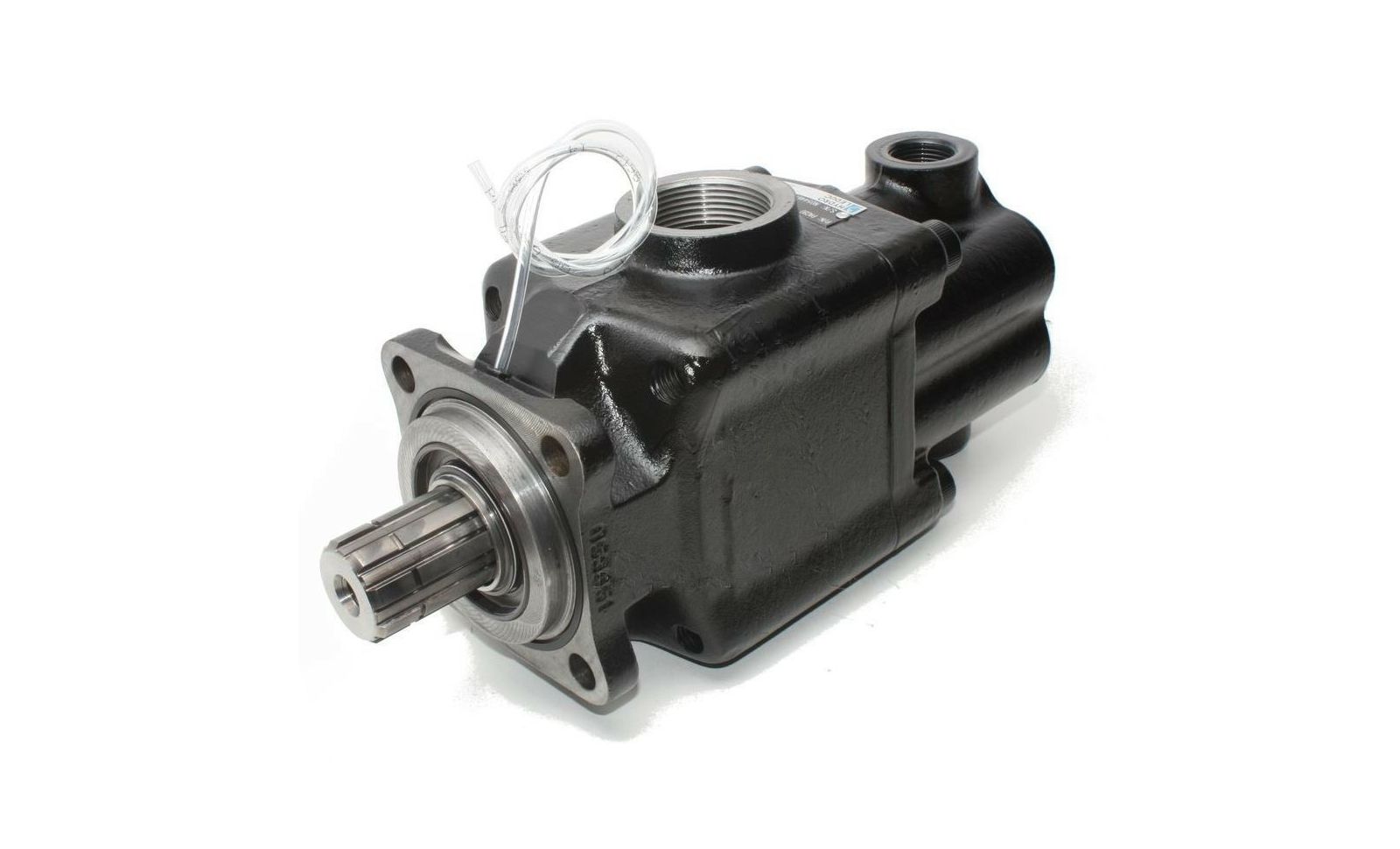

Dvostruka aksijalno-klipna hidraulička pumpa s konstantnim pomakom serije PA2
Prirubnica: kvadratna - 4 rupe fi12,75 mm
Razmak montažnih vijaka 80x80 Usisni priključak: G 2" BSP
Ispusni priključak: G3/4" BSP
Brzina protoka za 1200 o/min : 90 + 90 l/min
Brzina vrtnje: do 1350 rpm
