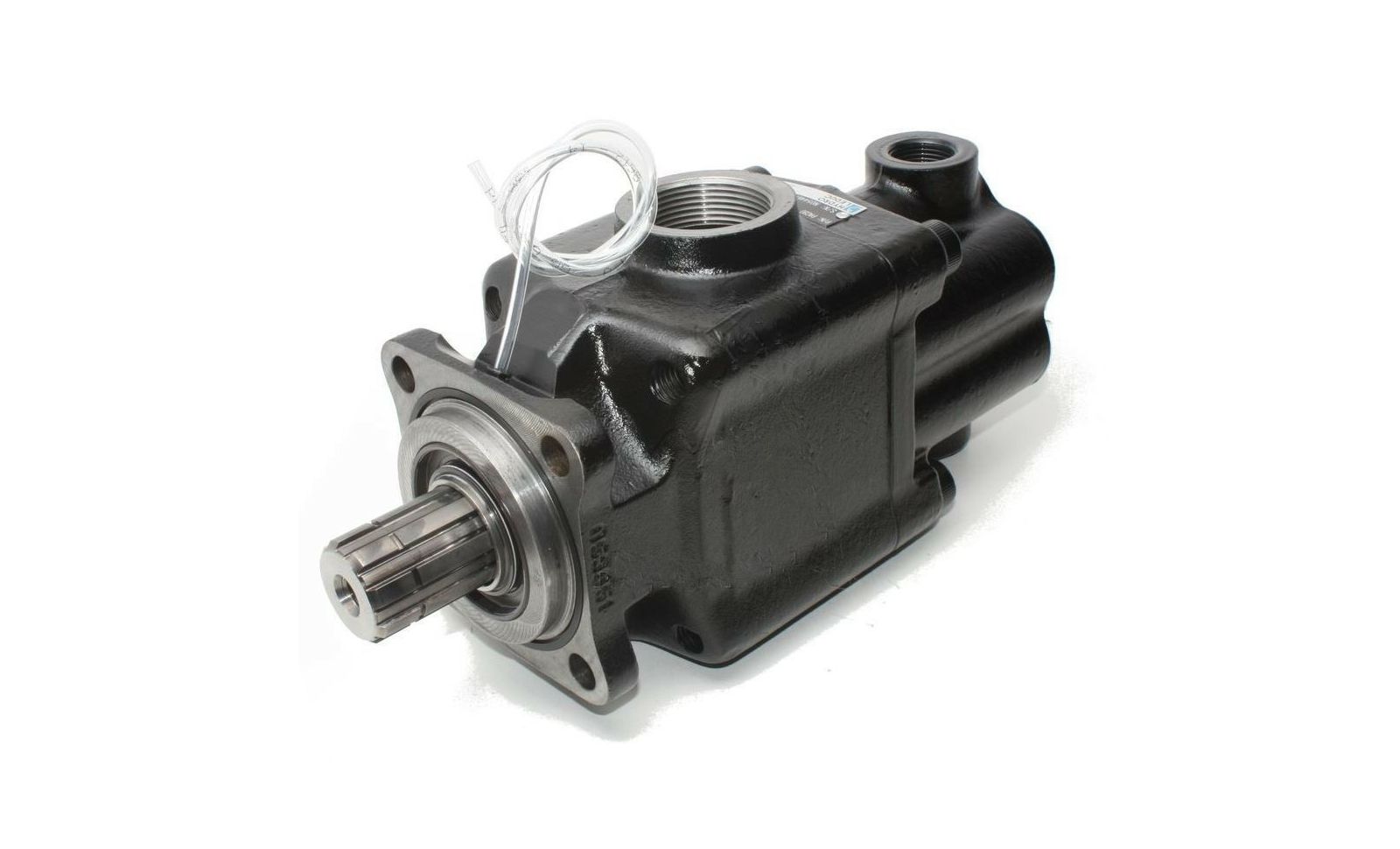

PUMPA PAC2-32, 32cm3/r,32cm3/r, L=D - HYDRO LEDUC

0511485
PAC2-32
61100011700


Max. revolution (rpm)
2000

Direction of rotation changeable
yes

Direction of rotation
left

Direction of rotation
right

Standard drive DIN
5462

Delivery rate 1 (cm3/r)
32

Delivery rate 2 (cm3/r)
32

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Type
PAC 2-32

Weight (kg)
17,12

Operating pressure (bar)
350

Suction connection
1 1/2 inch internal thread

Max. pressure (bar)
500

Material housing
cast steel

Construction
straight

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm
