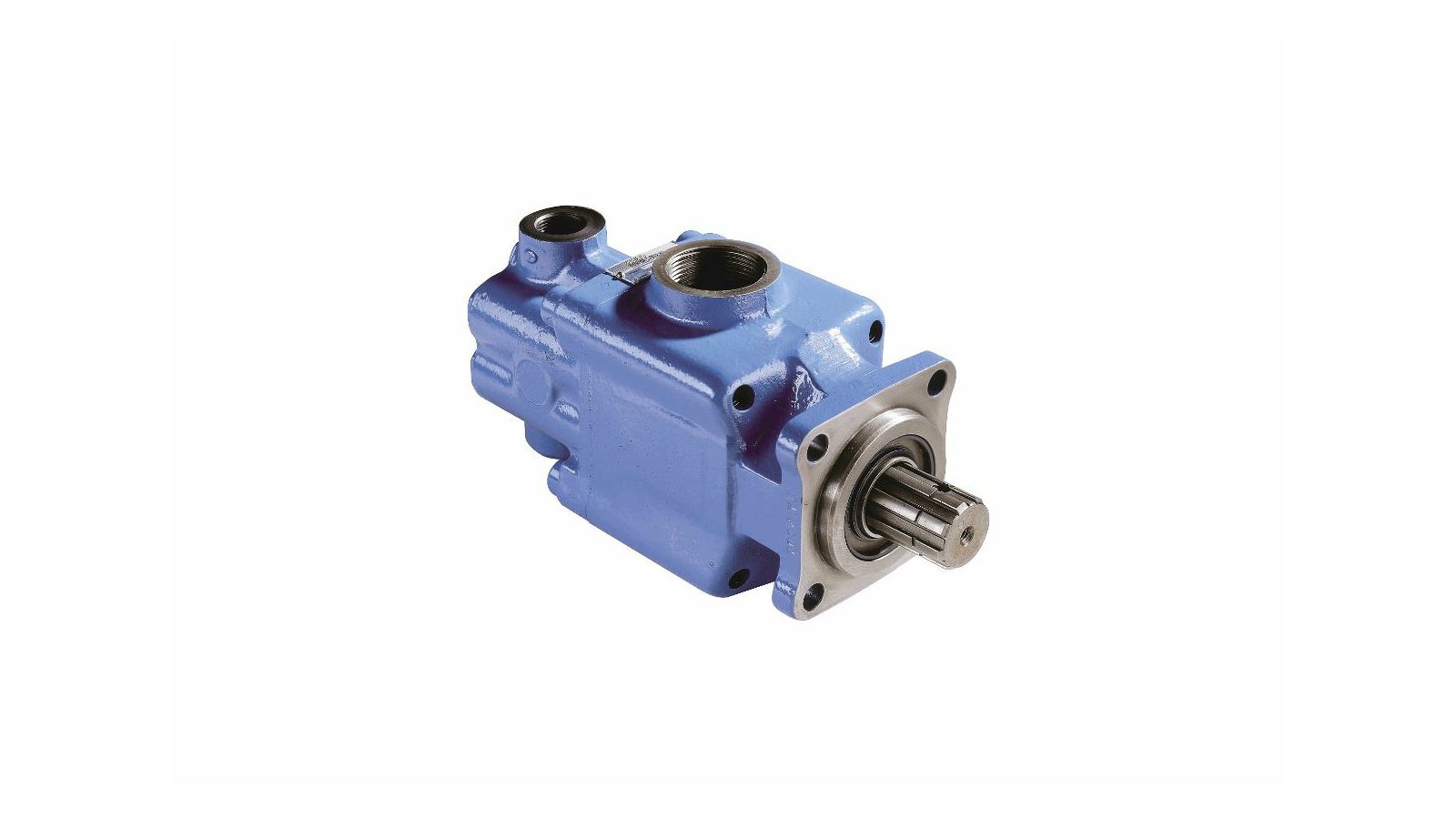

PUMPA RAVNA, PAC2-40, 39cm3/r, 39cm3/r - HYDRO LEDUC

Name: PUMPA RAVNA, PAC2-40, 39cm3/r, 39cm3/r - HYDRO LEDUC
Brand: HYDRO LEDUC
SKU: 130617
Availability: InStock

Šifra: 130617

Kataloški: PAC2-40

Jedinica mjere: Kom

Proizvođač: HYDRO LEDUC

Dostupnost artikla: 0 Kom / dobavljiv po narudžbi (5-10 radnih dana)

PAC2-40
61100011900

Weight (kg)
17.297

Brand
Leduc

Operating pressure (bar)
350

Max. revolution (rpm)
1700

Direction of rotation changeable
yes

Max. pressure (bar)
500

Direction of rotation
left

Direction of rotation
right

Standard drive DIN
5462

Material housing
cast steel

Type
PAC 2-40

Delivery rate 1 (cm3/r)
39

Delivery rate 2 (cm3/r)
39

Suction connection
1 1/2 inch internal thread

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Construction
straight

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm
