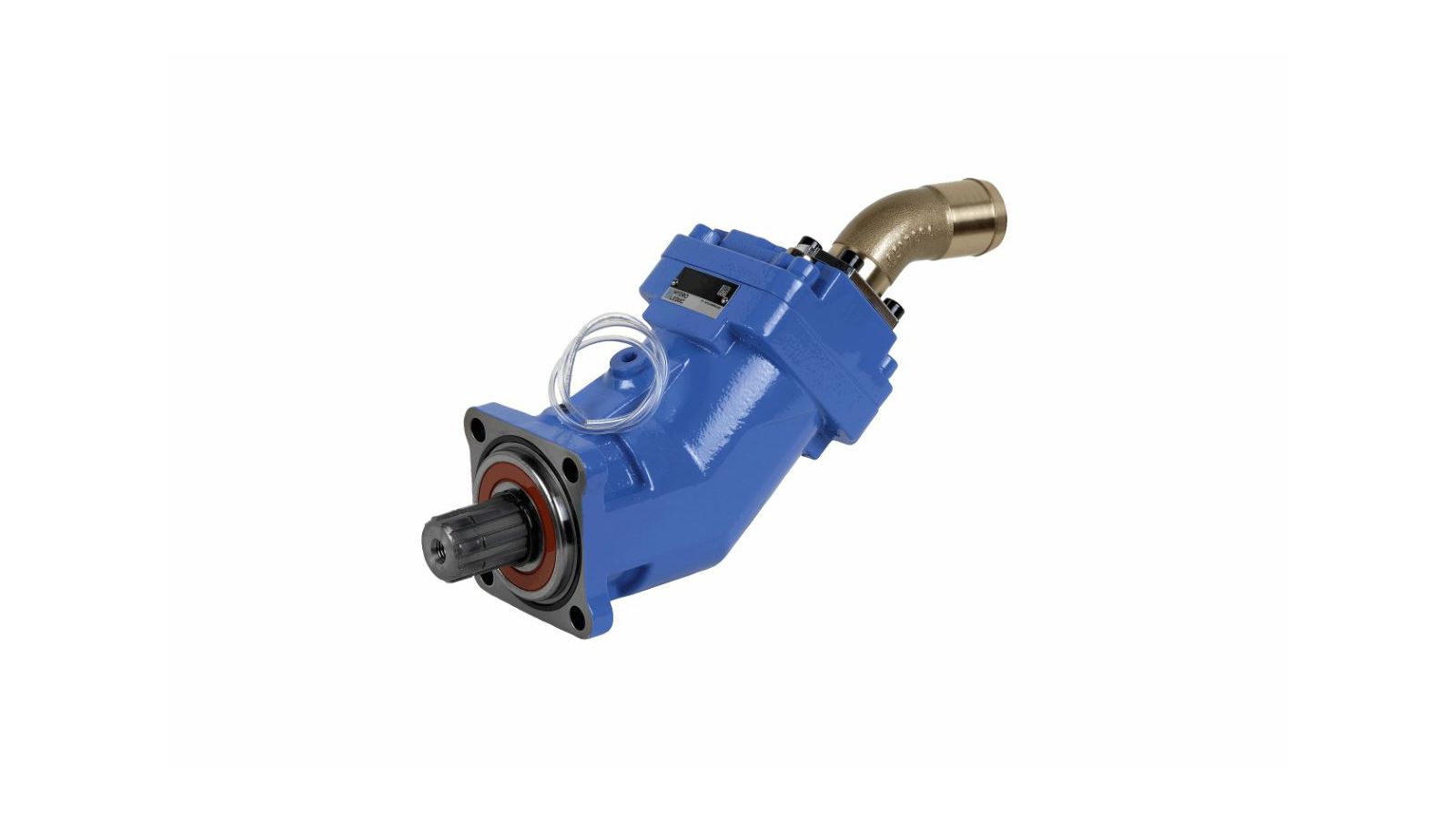

PUMPA XPI12, 12cm3/r, LIJEVA/DESNA (SA USISNIM NASTAVKOM 45°) - HYDRO LEDUC

0523820
Palfinger - EP1394
HDS12
60100110123
60100110129
Hydroleduc XPi12 0523820
SCP012 20472
SCP012 20472R
SAP012 23012
23012R
EP1394A
SUNFAB: SCP-012R-N-DL4-L35-S0S-000
SCP-012L-N-DL4-L35-S0S-000 SCP-012R-N-DL4-H35-S0S-000
SCP- 012L-N-DL4-H35-S0S-000,
PARKER:
F1-12-R
3782212
F1-12-L
3782211
61100351900

------------------

Weight(kg)
10,2

Brand
Leduc

Operating pressure(bar)
380

Max.revolution(rpm)
3150

Direction of rotation changeable
yes

Max.pressure(bar)
420

Deliveryrate(cm3/r)
12

Direction of rotation
left

Direction of rotation
right

Standard driveDIN
5462

Material housing
caststeel

Construction form
inclinedaxis

Type
XPI12

Specification drive
shaft8x32x36

Assembly flangedrive
4-hole 80x80mm

Suctionconnection
plugged in

Pressure connection
G3/4 inchinternal thread
