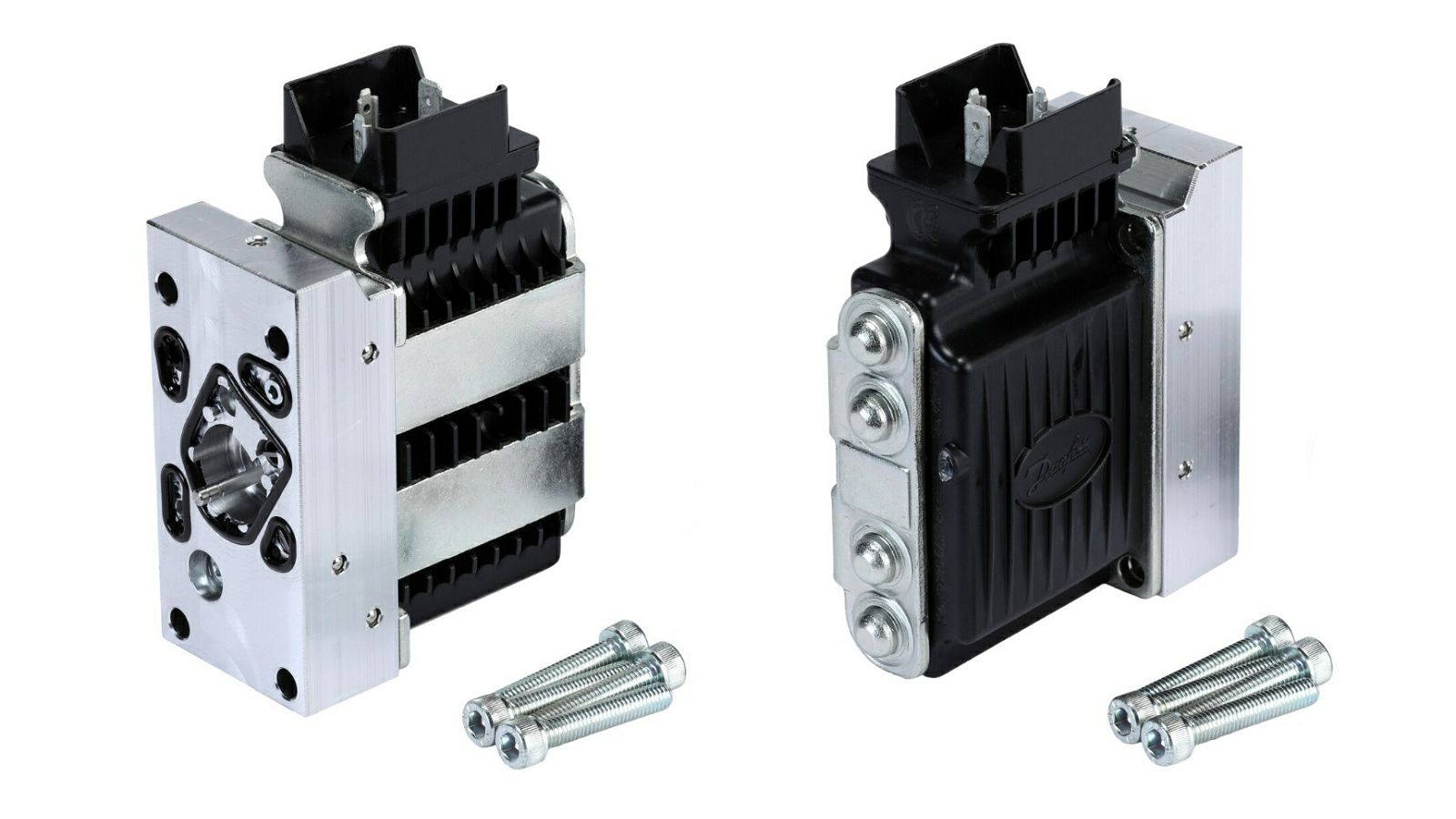

PVEH electronic actuator ZA PVG32 11-32V Hirschmann KONEKTOR - DANFOSS

157B4073
Alt Number: 11166824
PVEH32-Aktuator-S7-1x4DIN-H-PAS GOMA

Replacement for PVE Series 2/3 : 157B4066

Replacement for PVE Series 2/3 : 157B4068

-----------

Length: 200 mm
Width: 140 mm
Height: 70 mm
Weight: 0.9 kg

-----------


PVE type: PVEH

Input signal ratiometric

CAN protocol none

Float position: no

Fault monitoring passive

Direction indication: no

EX-certified no

Hydraulic ramp: no

Anodized: Yes

Voltage: 11 - 32 V

Connetor: Hirschmann

IP rating: IP66
