0514500001
D952-2007-10
D952200710
0514R15A1RPV32SM28FZ28
-------------
Size: 32
Displacement: 32 cm3
Direction of Rotation: Clockwise
Max Speed 1450 rpm: 1800 rpm
Max Pressure: 280 bar
Ambient-temperature range: –15 … 60 °C
Shaft Diameter: 35 mm
Nominal Flow Rate rpm: 45.3 l/m
Viscosity Range: 16 …. 46 mm2/s
Weight: 35 Kg

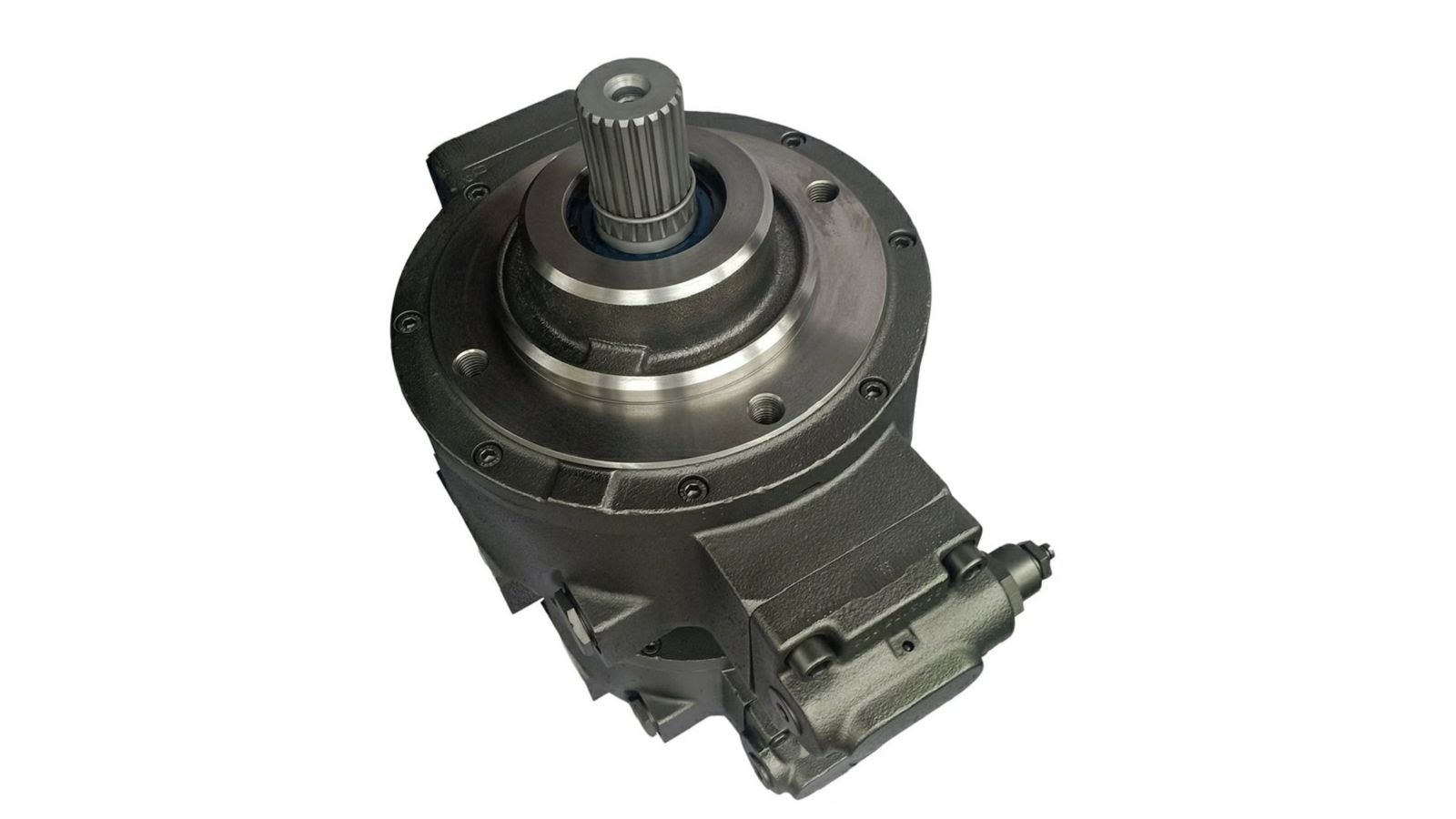

RADIAL PISTON PUMP
DEVICE TYPE: MOOG PUMPE D952-2007-10, 0514500001, D952-2007-10, 0514500001
ADAPTER FOR SAU CONNECTION: RKP-II/RKP 32/45 CA51297-001-00 | SAE11/2" 3000psi/SAE1 " 3000psi IS SUPPLIED
