D8LC
25.1891.00.0000.0Z
251891000000
58400082600
Air flow (m3/h): 310
Max. heat flow (W): 8000
GGVSEB/ADR: approved
Type: Airtronic D8LC
Usage: auxiliary heating system
Weight (kg): 16.966
Height (mm): 250.0
Voltage (V): 24
Number of levels: 2.0
Fuel: diesel
Length (mm): 653.0
Width (mm): 260.0
PUMPICA GORIVA UNUTRA: 22460401

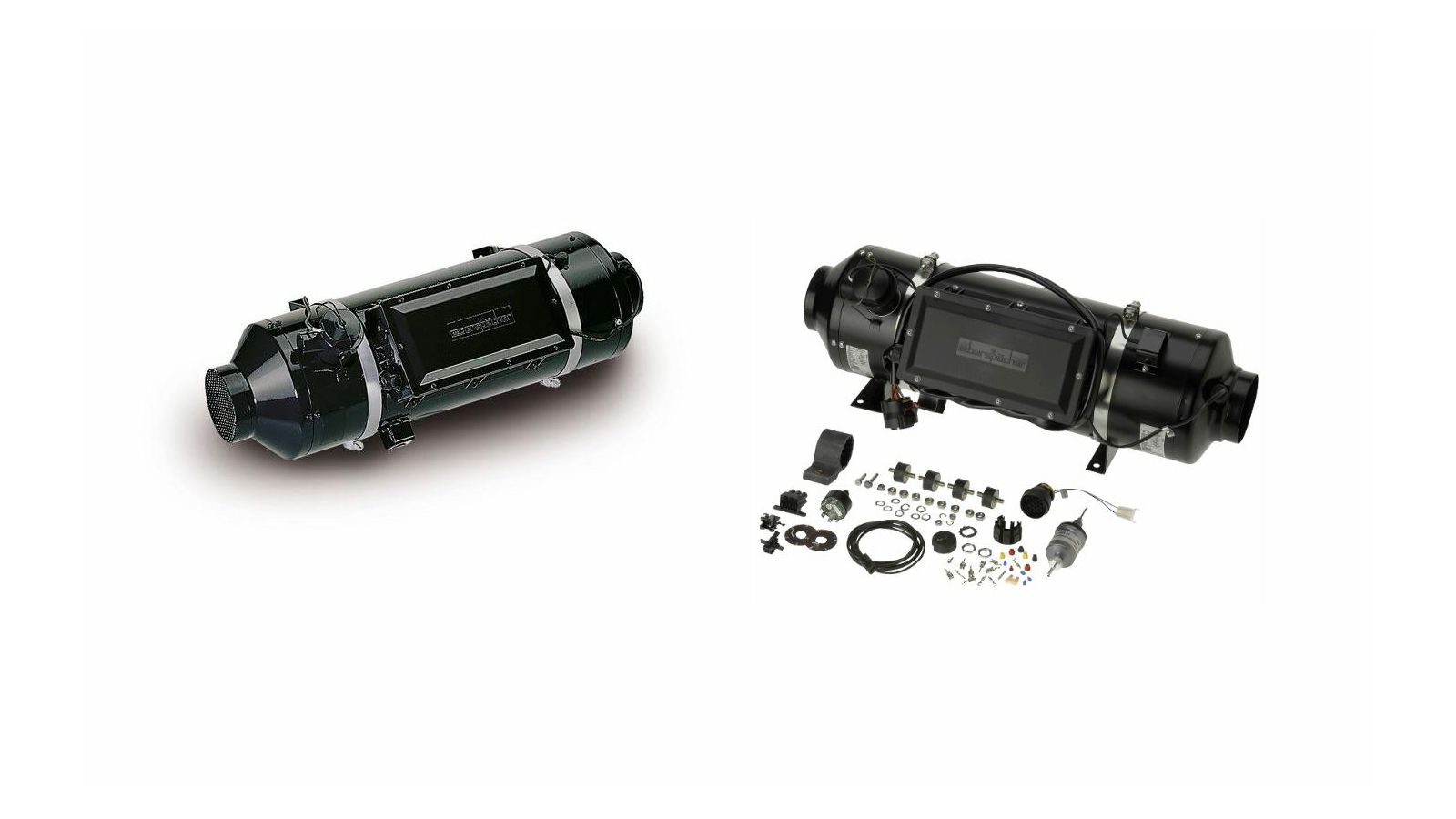

Scope of Delivery:
heater
operating device
Temperature sensor external
Dosing pump with built-in fuel filter + holder
Wiring harness with connection parts
Flat fuse with fuse holder
Socket housing with connection parts
Plug-in sleeves with protective sleeves
Metal rubber buffer with mounting parts
Dimensions (L x W x H) [mm]: 653 x 260 x 250 mm
thermal air flow highest / large / medium / small [kg / h]: 0/310/0/310
fuel consumption highest / large / medium / small [l]: 0 / 1,05 / 0 / 0,4
Operating consumption highest / large / medium / small [W]: 0/115/0/115
