5093Vordermaier
61100299400
---------

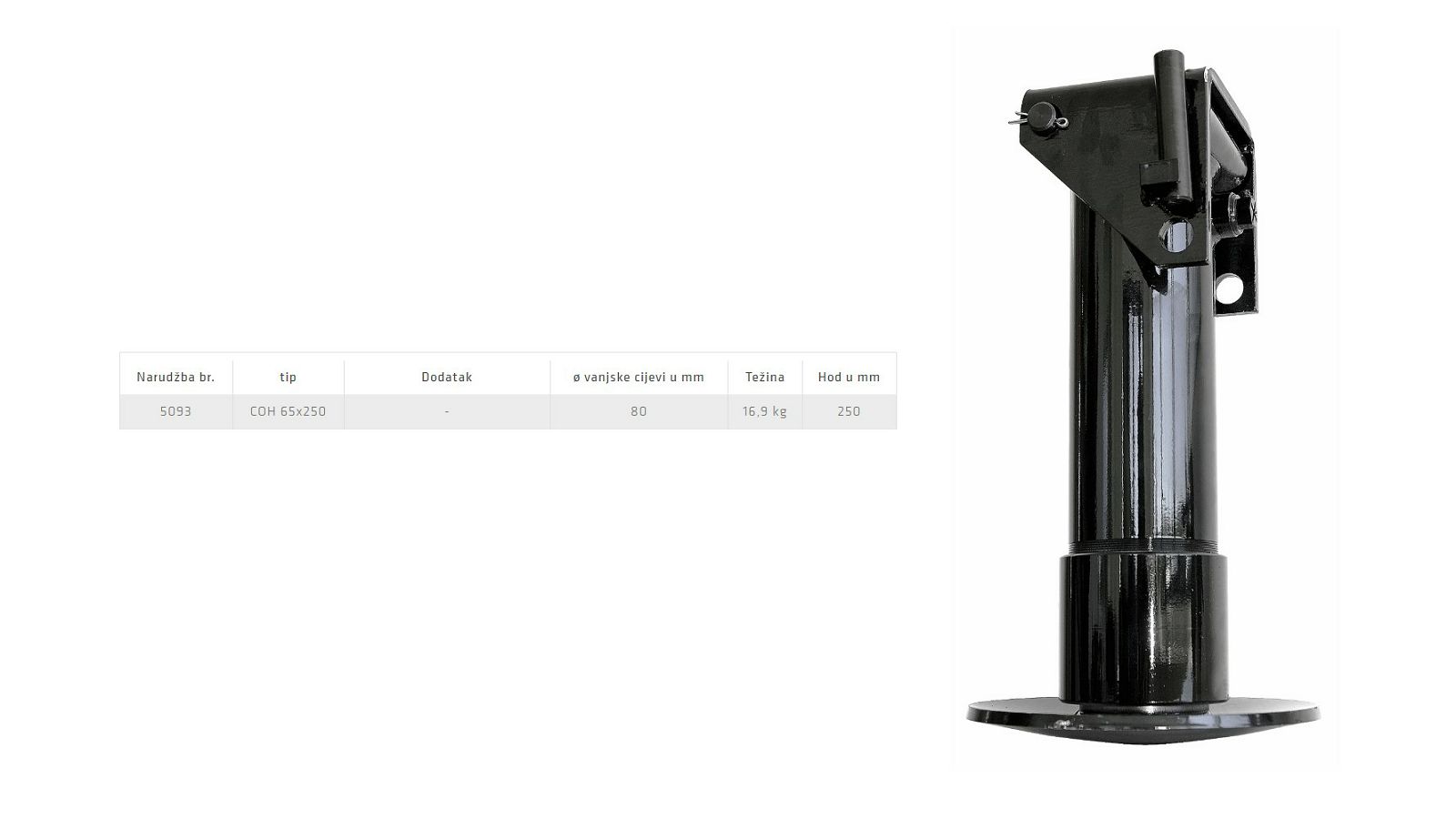

stabilizer cylinder single-acting with return spring for various applications, e.g. in the liquid manure sector for single-axle and tandem trailers
Compression force by operating pressure (t)
6
Installation dimension (mm)
435
Oil connection rod side (inches)
1/2 internal thread
Operating pressure (bar)
180
Stroke (mm)
250
Surface
painted
Surface piston rod
hard chromium plated
Weight (kg)
17,3
o casing tube (mm)
80
o Rod (mm)
65
o support plate (mm)
160
