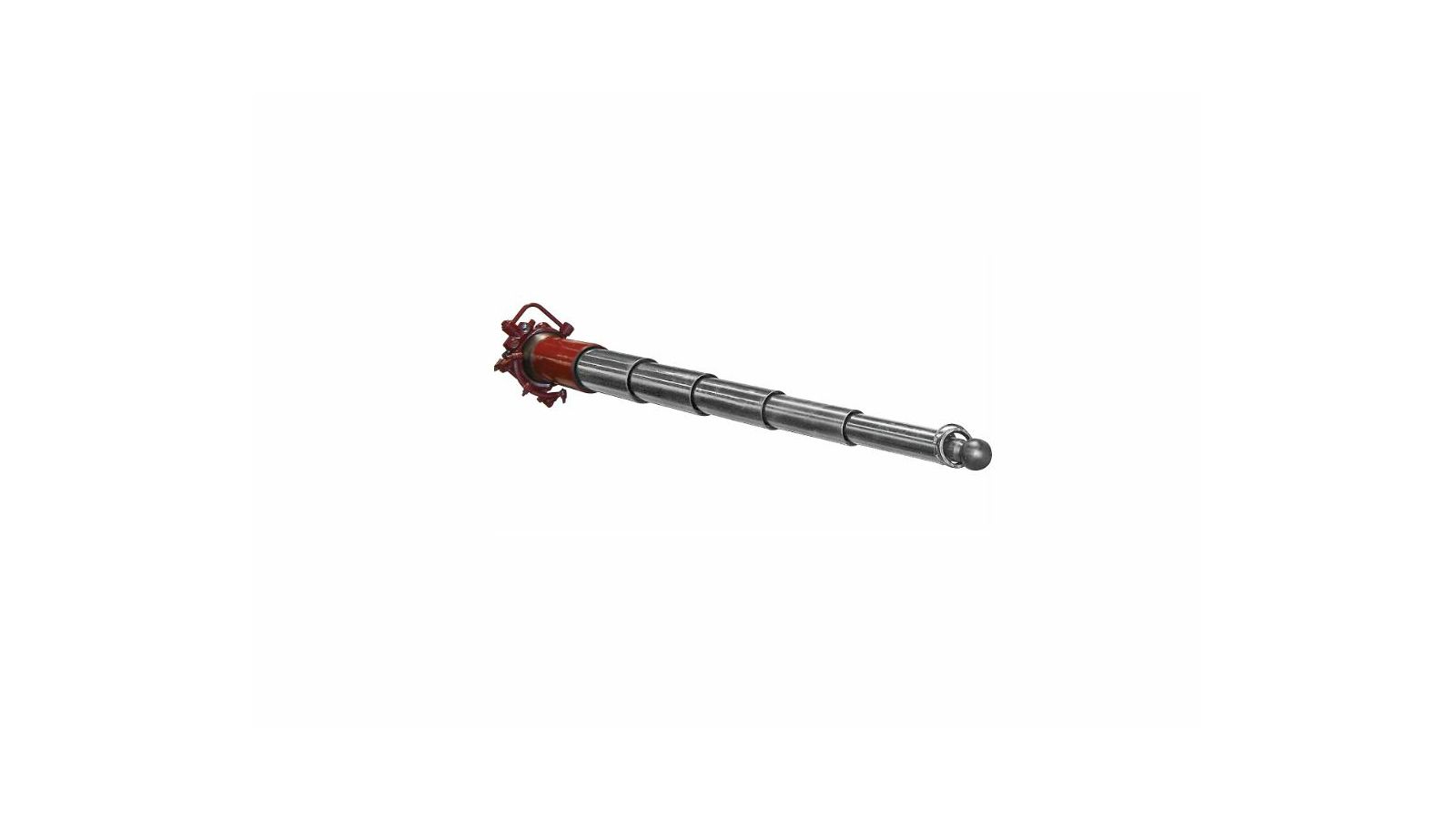

SVIJEĆA MEILLER KPL. CILINDAR S KUGLOM 1554/630, 5 SEGMENTA

1554/630
61102502300
15542021630

Installation dimension(mm): 474
Working volume(l): 15
oupper ball(mm): 60
olowerball(mm): 215
Type ball end: 2000/63
Type1554/630
Weight(kg): 91.2
Pistono(mm): 151-129-110-93-78
Stroke(mm) 1410.0


Opseg isporuke : cilindar s kuglom
Radni kapacitet (l) 15
Tip 1554/630
Hod (mm) 1410
Sila podizanja (t) 12
Ugradbena dimenzija (mm) 474
FI klipa (mm) 151-129-110-93-78
Težina ( kg ) 91,2
o donja kugla (mm) 215
Broj stupnjeva 5
o gornja kugla (mm) 60
Radni tlak (bar) 250
