R902207688
R902036952
R902149389
A18VO
3780336
3786171 - CRNO OBOJANA
0512510
TXV75
KVA7VO80DRS/63r-Mek-Mek64
A18VO080DRS00/11NRWK0E810-0
A17VO080DRS00/10MRWK0E81-0
EP769R
61100354400
Max. torque (Nm): 446
Max. revolution (rpm): 2240
Direction of rotation changeable: no
Delivery rate (cm3/r): 80
Direction of rotation: right
Differential pressure valve (bar): 19-40
Pressure connection: 1 inch internal thread
Running fit connection (inches): 7/16 - 20 UNF-2B

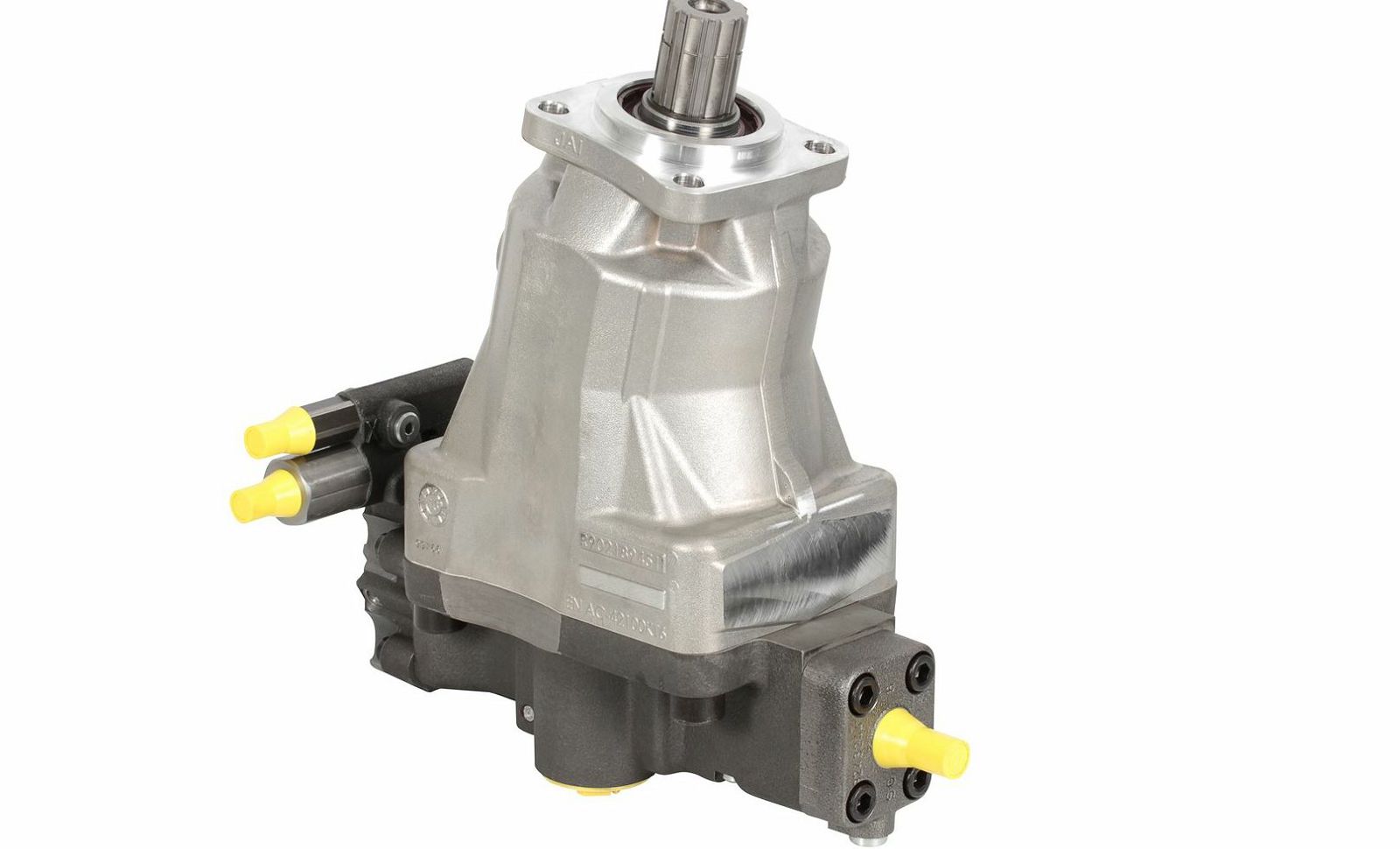

Type A18VO
Assembly flange drive: 4-hole 80x80 mm
Weight (kg): 26,809
Operating pressure (bar): 350
Brand: Bosch-Rexroth
Suction connection: 1 1/4 inch internal thread
Max. pressure (bar): 400
Material housing: aluminum cast
Leakage oil connection: M 12x1,5
Specification drive: shaft 8x32x35
