3786170
VP1-045-L
61100015500
------------

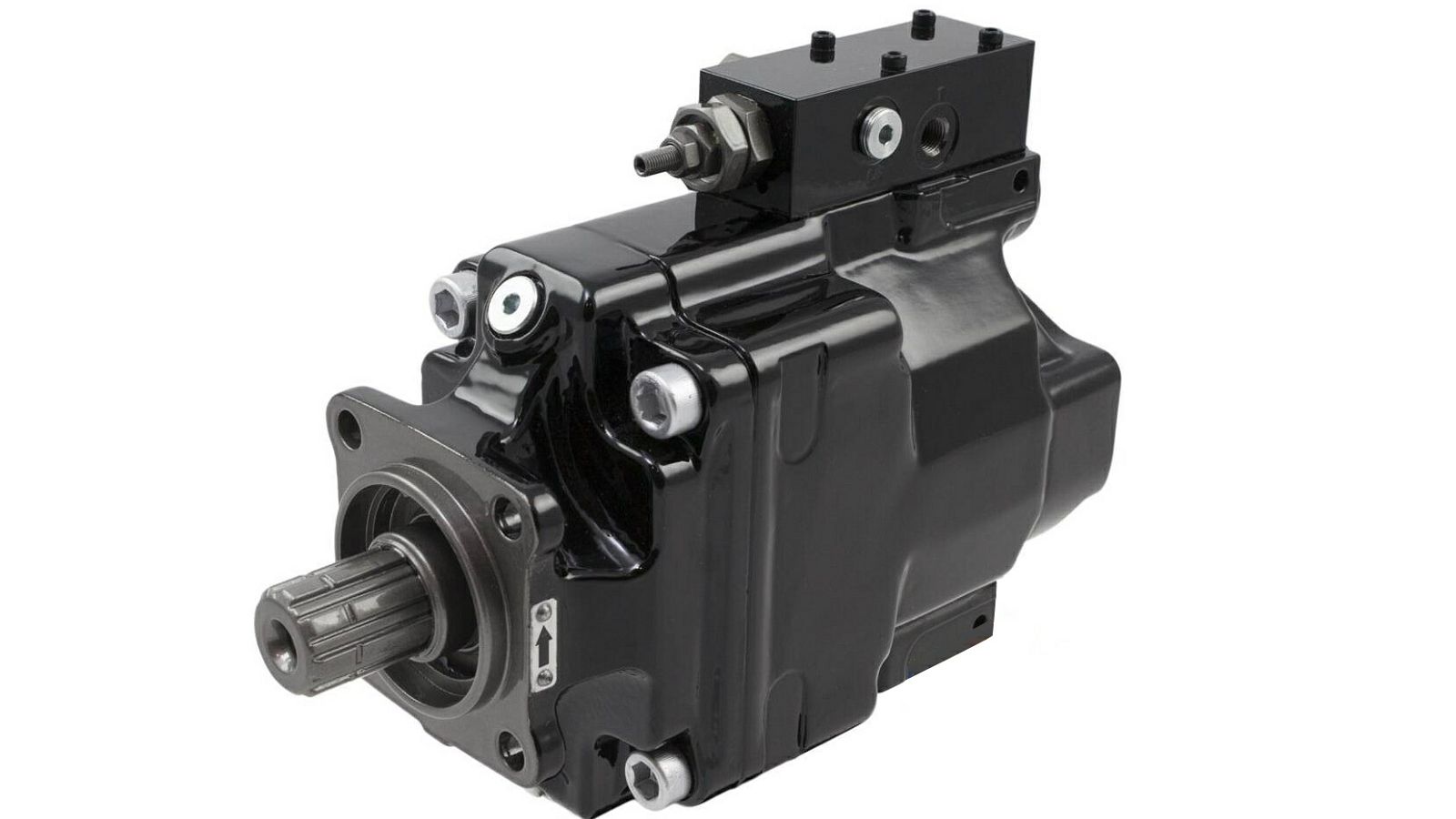

variable pump with axial piston rotary group for special use in commercial vehicles The volume flow is proportional to the drive speed and the displacement volume. By adjusting the swivel angle, the volume flow can be changed continuously.
Brand Parker
Product code 3786170
Displacement 45 cm3/rev
Rotation direction Counterclockwise
Flange ISO 7653 4 holes 80 mm
Pump shaft DIN 5462 8x32x36
Maximum pressure 350 bar
Maximum rotation speed 3000 rpm
Thread press G 1"
Volume range 41 - 79 cm3/rev
Suction connection G 1-1/4"
Assembly flange drive
4-hole 80x80 mm
Brand
Parker
Delivery rate (cm3/r)
45
Differential pressure valve (bar)
{lt} 35
Direction of rotation
left
Direction of rotation changeable
no
Leakage oil connection
1/4 inch internal thread
Material housing
cast steel
Max. pressure (bar)
400
Max. revolution (rpm)
2400
Max. torque (Nm)
375
Operating pressure (bar)
350
Pressure connection
1 inch internal thread
Running fit connection (inches)
1/4 internal thread
Specification drive
shaft 8x32x36
Standard drive
DIN 5462
Suction connection
1 1/4 inch internal thread
Type
VP1-045-L
Weight (kg)
11,8
