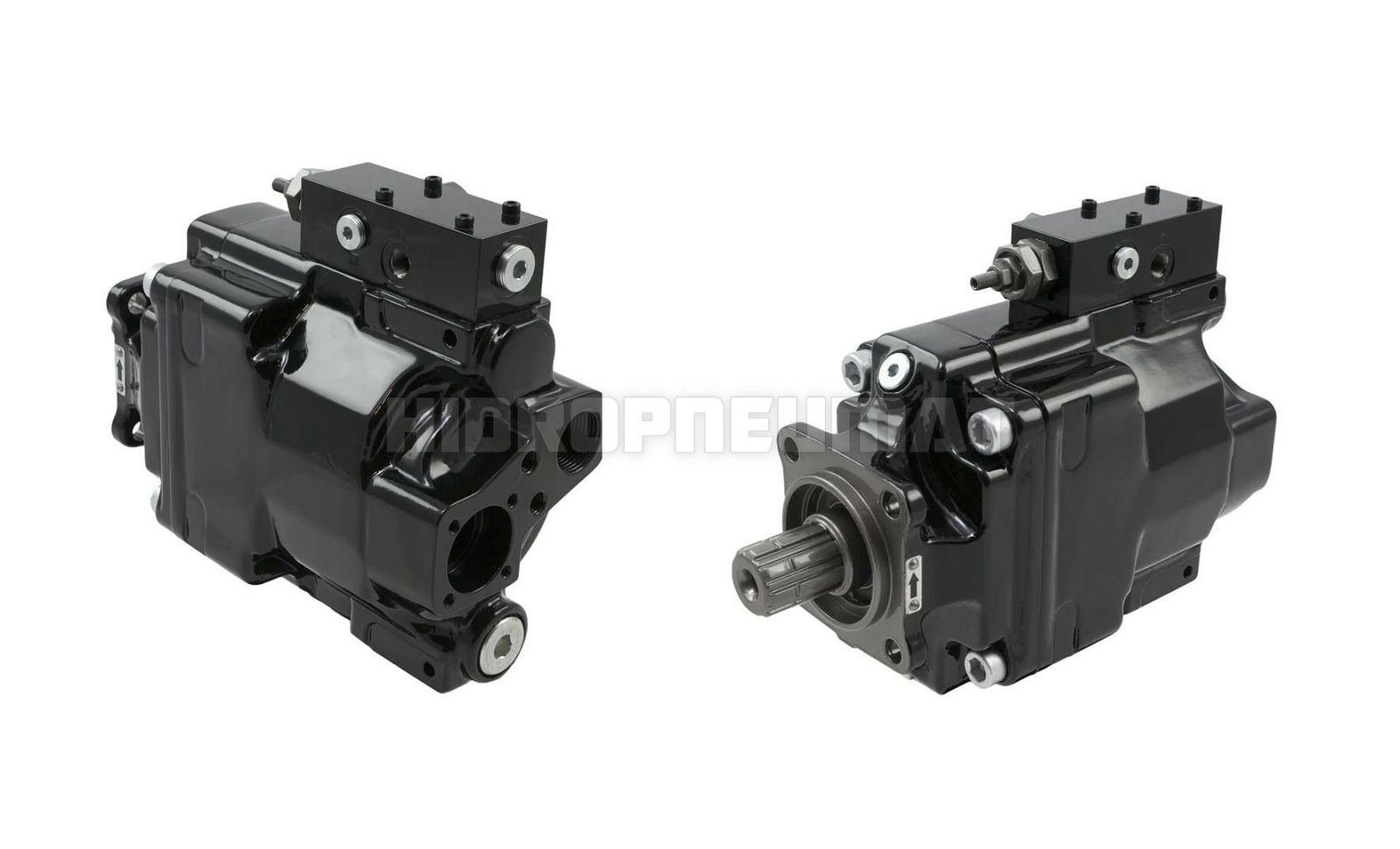

3786002
VP1-095-L
VP1095L
Max. torque (Nm)
375
Max. revolution (rpm)
2200
Direction of rotation changeable
no
Delivery rate (cm3/r)
95
Direction of rotation
left
Standard drive DIN
5462
Differential pressure valve (bar)
{lt} 35
Pressure connection
1 inch internal thread
Running fit connection (inches)
1/4 internal thread
Type
VP1-095-L
Weight (kg)
27,104
Operating pressure (bar)
400
Brand
Parker
Suction connection
clamped
Max. pressure (bar)
420
Material housing
cast steel
Leakage oil connection
1/4 inch internal thread
Specification drive
shaft 8x32x36
Assembly flange drive
4-hole 80x80 mm
