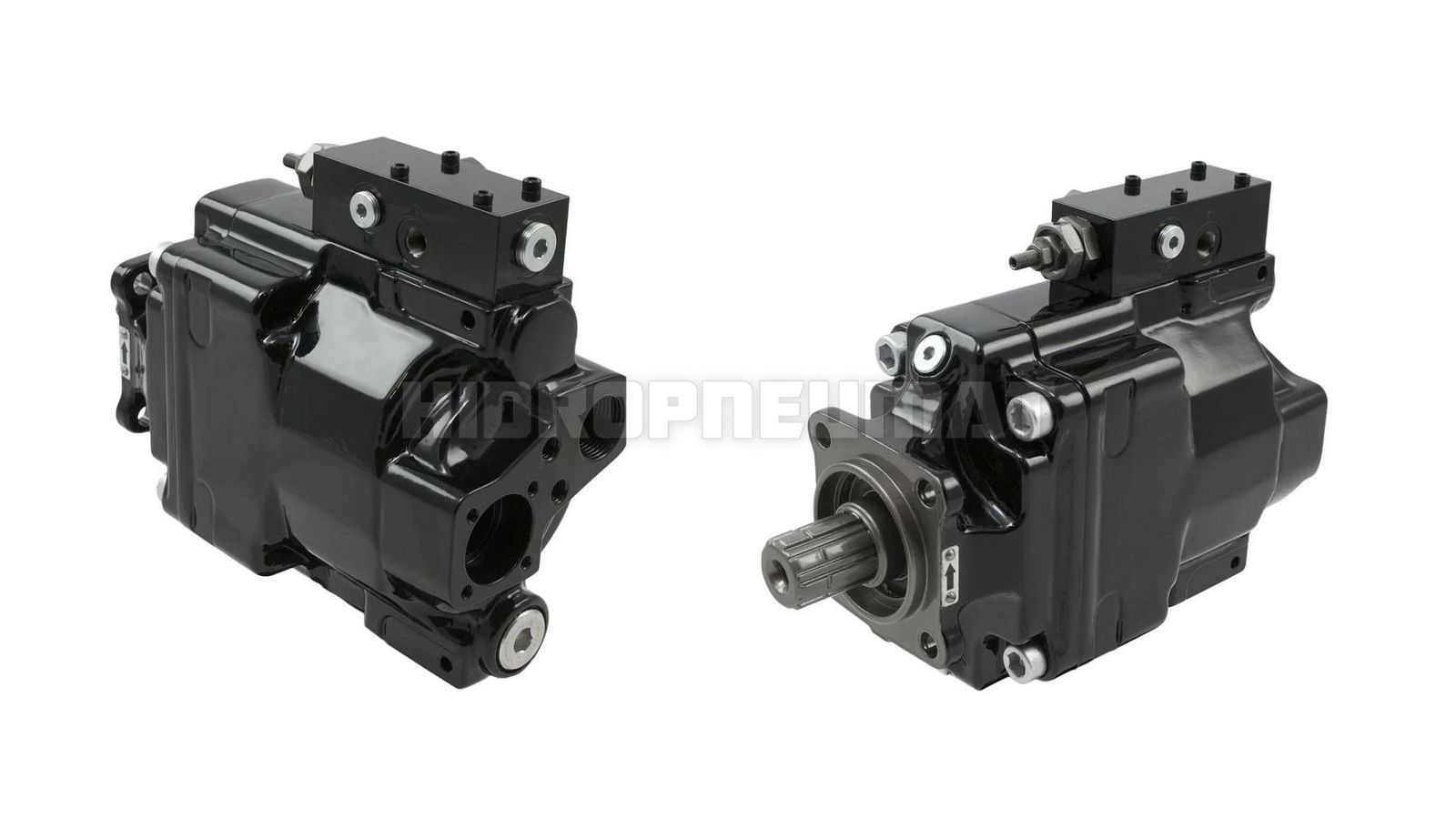

3786001
VP1-095-L
VP1095L
0512525 HYDRO LEDUC
TXV92L HYDRO LEDUC
KVA7VO80D
EP770L
Max. torque (Nm): 375
Max. revolution (rpm): 2200
Direction of rotation changeable: no
Delivery rate (cm3/r): 95
Direction of rotation: Left
Standard drive DIN 5462
Differential pressure valve (bar): {lt} 35
Pressure connection: 1 inch internal thread
Running fit connection (inches): 1/4 internal thread
Type: VP1-095-L
Weight (kg): 27
Operating pressure (bar): 400
Suction connection: clamped
Max. pressure (bar): 420
Material housing: cast steel
Leakage oil connection: 1/4 inch internal thread
Specification drive: shaft 8x32x36
Assembly flange drive: 4-hole 80x80 mm
