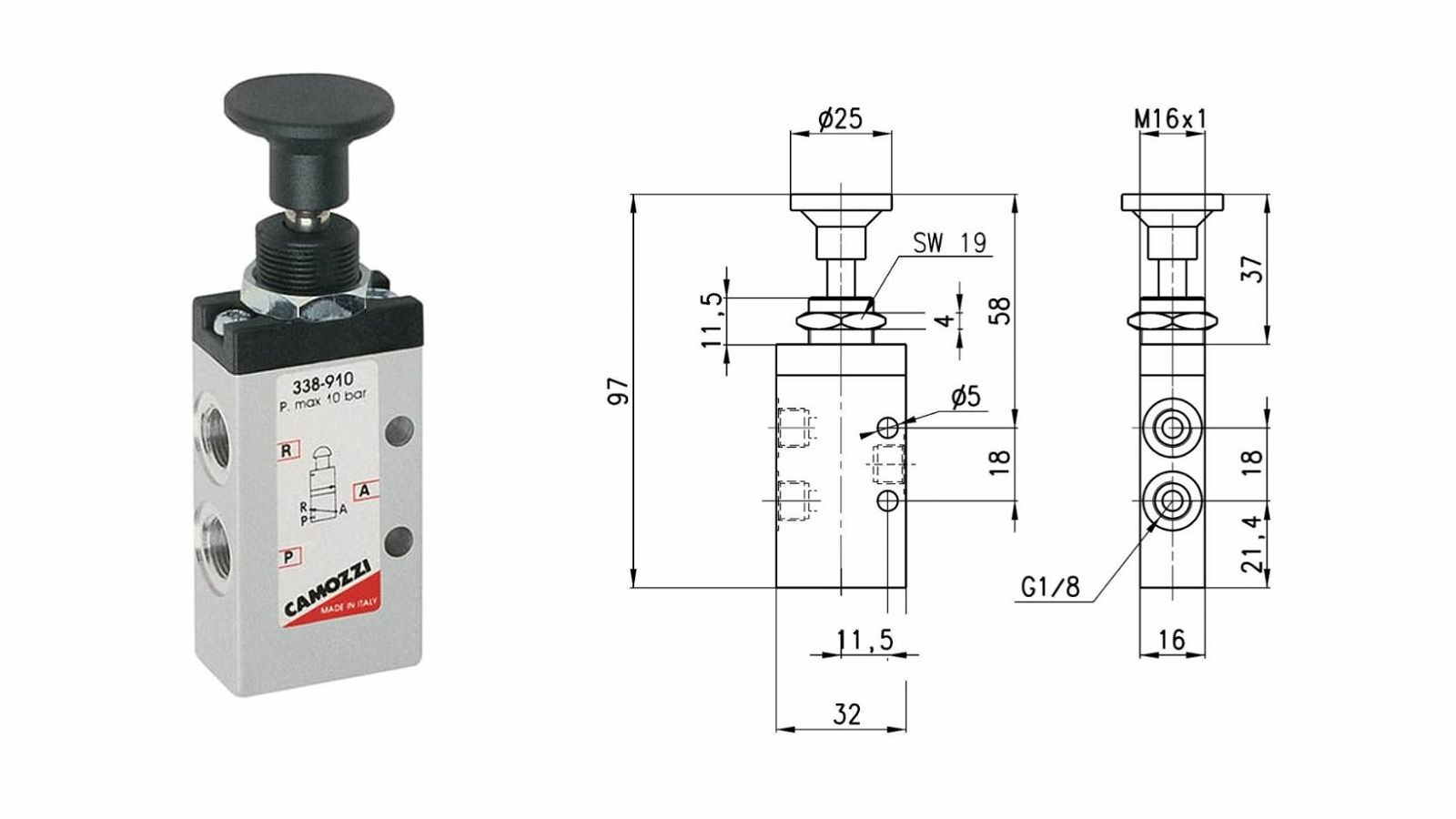

338-910
00430010
0001502061H
Construction Series 3 and 4: spool-type Series 1: poppet-type Series VMS: slide
Function Series 1, 3 and 4: 3/2 - 5/2 - 5/3 ways CC CO Series VMS: 3/2-way
Materials aluminium body, stainless steel spool, brass poppet, NBR seals
Ports Series 1, 3 and 4: G1/8, G1/4 Series VMS: M5, G1/8, G1/4, G3/8, G1/2, G3/4
Ambient temperature 0°C ÷ 60°C
Medium temperature 0°C ÷ 50°C
Operating pressure see the single models
Fluid Filtered air, without lubrication. If lubricated air is used, it is recommended to use ISO VG32 oil. Once applied the lubrication should never be interrupted.
