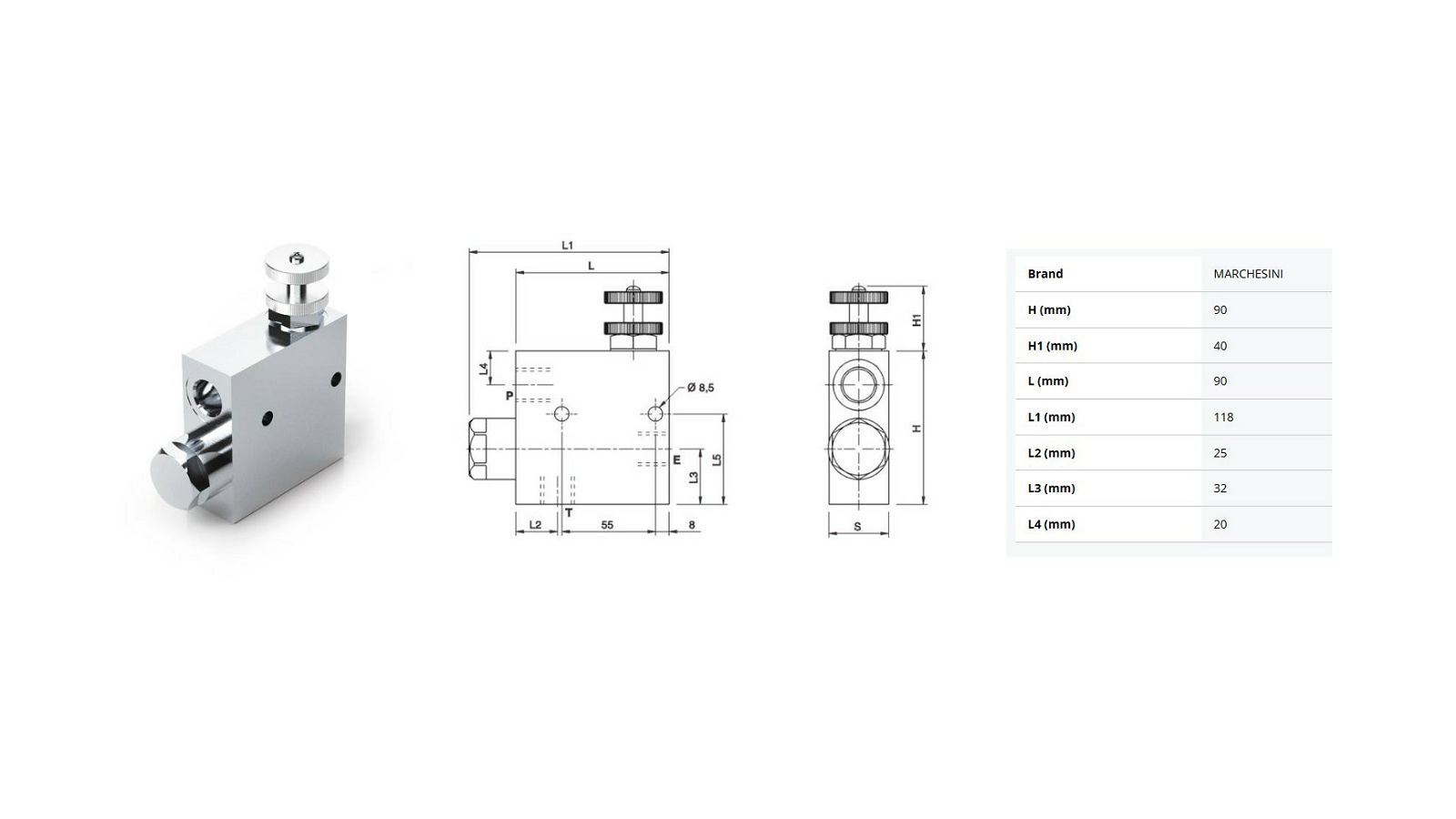

V1120
RPF3
61100435700
-----------
The priority flow control valve allocates the input oil quantity (E - pressure input) to the oil port P (controlled quantity) depending on the setting of the dial and keeps it constant.
The excess residual oil is drained off to the tank via port T (return).
Connection pressure input (inches)
G 1/2 internal thread
Connection pressure output (inches)
G 1/2 internal thread
Connection return flow (inches)
G 1/2 internal thread
Material
steel
Max. flow rate (l/min)
60
Max. operating pressure (bar)
350
Setting type
mechanical with rotary knob
Surface
Cr6-free galvanized
Weight (kg)
2,098
