0510990074
AZPZ-12-080LXXXXKX-S0499
0510990075
3618001M3 MASSEYFERGUSON
3799411M2 MASSEYFERGUSON
3799528M1 MASSEYFERGUSON
-----------
Max. flow [l/min]
240.0
Size (geometric displacement) [cm3/rev]
80
Maximum intermittent pressure [bar]
8
Maximum rotational speed [rpm]
3000
Drive shaft
Non-standard version
Direction of rotation
anti clockwise rotation
Front cover
Non-standard version
Housing material
Aluminum
Noise level
Standard noise level

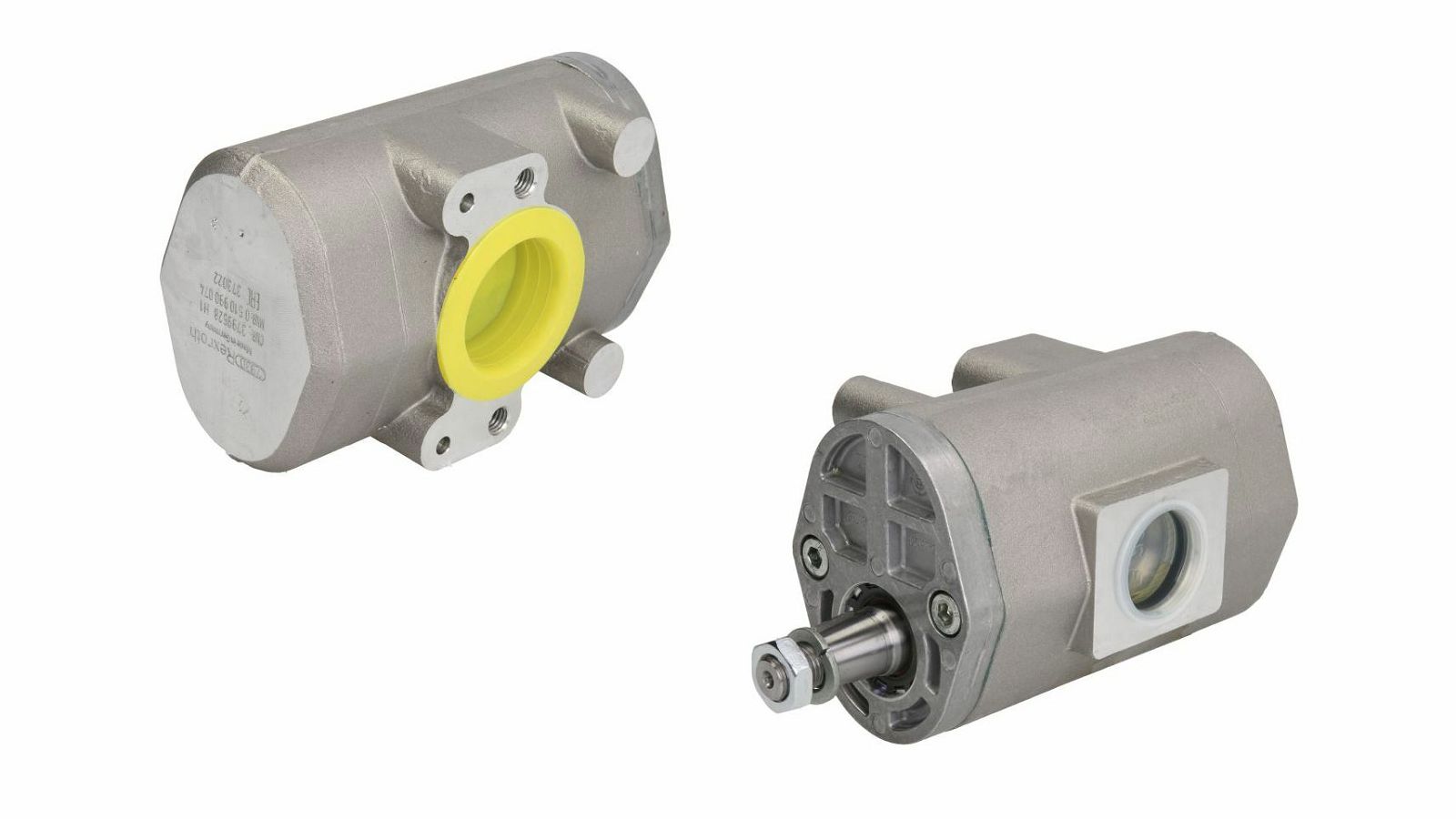

External gear unit
External gear unit function
Pump
Series
Model Z (22 ... 38 cm3/rev)
Unit version
Bearing diameter O 18mm
Version
corrosion-resistant
Line connection
Non-standard version
Sealing material
NBR, WDR in FKM
Rear cover
Non-standard version
Weight [kg]
3.5
