0510765351
1-32-375-101 CASE
132375101
R918C02698
1PN/1PN/165
62000036600
-------------

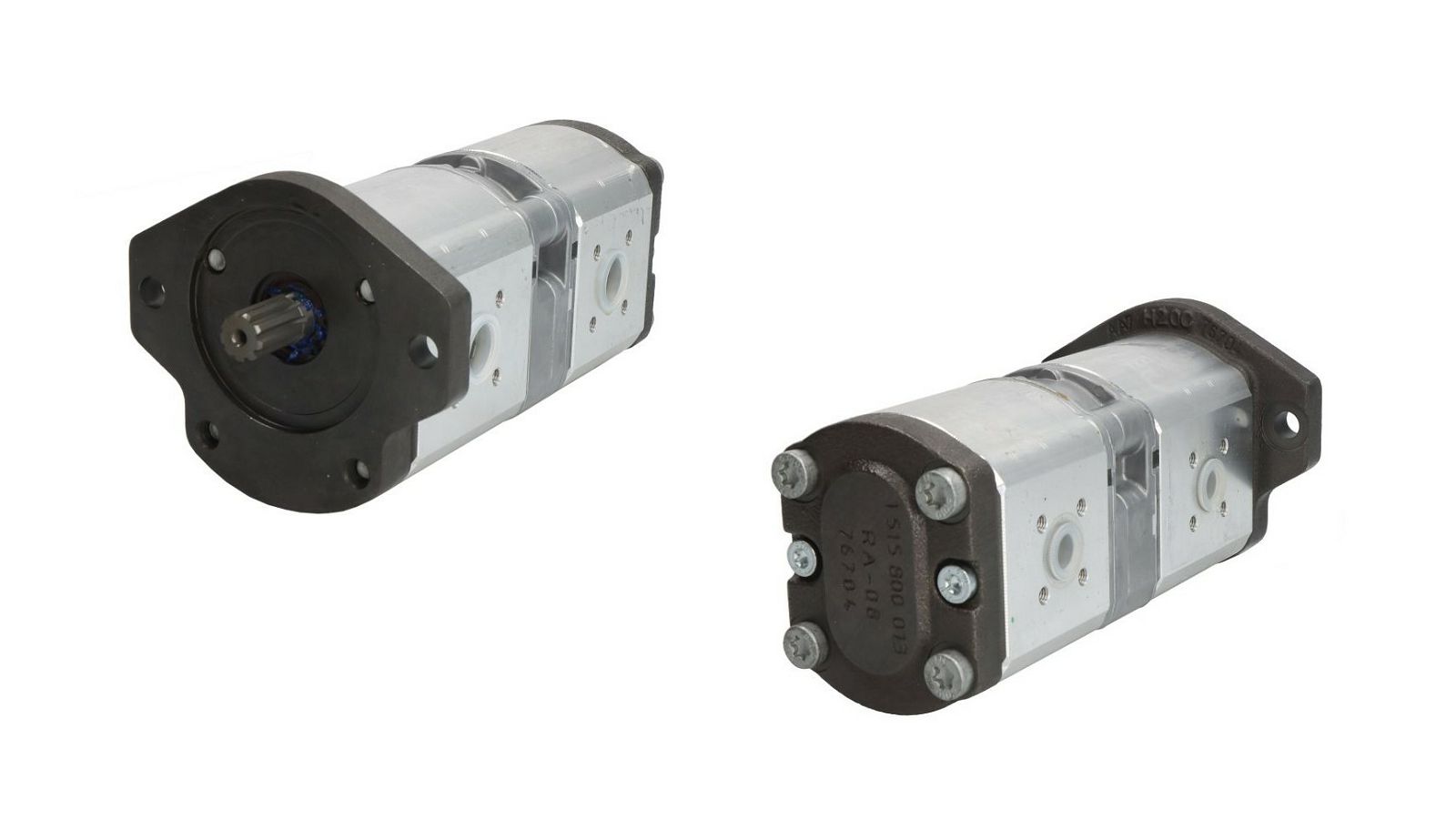

Assembly flange drive
2-hole 106.4 mm
Brand
Bosch-Rexroth
Delivery volume (cm3/r)
22,5
Direction of rotation
left
Material housing
aluminum
Max. pressure (bar)
210
Max. revolution (rpm)
2500
Mounting pressure connection
hole circle 35 mm M 6
Mounting suction connection
hole circle 40 mm M 6
Optional equipment valve
without valve
Specification drive
splined shaft DIN 5482 B17x14
Version
double pump
Weight (kg)
6
o pressure connection (mm)
15
o shaft/hub (mm)
16,5
o suction connection (mm)
20
------------
ZA:
Case IHC
CS / CS Pro Series
CS78, CS86, CS94
Steyr
9000 Series
9078 (A), 9080 M, 9086 (A), 9090 M, 9094 (A)
9100 Series
9100 M
M Series
M9078, M9086, M9094
